Heinkel He 100

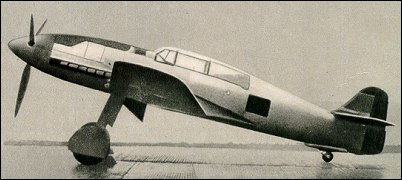

Designed as a replacement for the very successful Messerschmitt Bf 109, the He 100 failed to win production orders. Nevertheless the 12 He 100D-1 built were eventually flown by Luftwaffe pilots as home-defence fighters. Power was provided by a Daimler-Benz DB 601 engine. On 30 March 1939 He 100V8 set a new world absolute speed record of 746.604km/h at the hands of Flugkapitan Hans Dieterle.

Heinkel He 100

Specification
 MODELHe-100D-1
 CREW1
 ENGINE1 x Deimler-Benz DB 601M, 876kW
 WEIGHTS
  Take-off weight2500 kg5512 lb
  Empty weight2070 kg4564 lb
 DIMENSIONS
  Wingspan9.42 m31 ft 11 in
  Length8.19 m27 ft 10 in
  Height2.50 m8 ft 2 in
  Wing area14.50 m2156.08 sq ft
 PERFORMANCE
  Max. speed670 km/h416 mph
  Ceiling9890 m32450 ft
  Range1005 km624 miles
 ARMAMENT1 x 20mm cannon, 2 x 7.92mm machine-guns

3-View

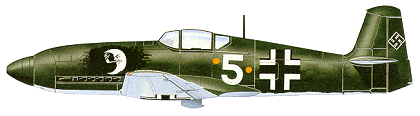

Heinkel He 100A three-view drawing (1715 x 1245)
