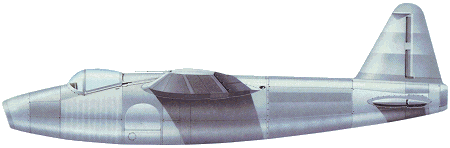

Heinkel He 178

This aircraft is assured a distinguished place in aviation history: on 27 August 1939, piloted by Flugkapitan Erich Warsitz, it made the world's first flight by a turbojet-powered aircraft. To put this record in its true context of achievement, it should be noted that the first flight of a turbojet-powered aircraft in Britain was that of the Gloster E.28/39 on 15 May 1941.

The engine to power the He 178 derived from the pioneering research work of Dr Hans Pabst von Ohain who (together with his assistant Max Hahn) had been employed by Ernst Heinkel in March 1936 and provided with the necessary facilities to continue the development of his work. By September 1937 a hydrogen-fuelled demonstration engine was being run on the bench, and in March 1938 his HeW 3 engine, using petrol as fuel, was developing about 4.89kW. In Britain the world's first turbojet aircraft engine had been bench-run on 12 April 1937. Of particular interest is the fact that the work of von Ohain and Whittle was entirely independent. The He 178 was designed to utilise von Ohain's power plant. It was a shoulder-wing monoplane of composite construction. The engine was mounted in the fuselage, with a nose air-intake duct passing beneath the pilot's seat and a long tailpipe discharging from the fuselage tailcone. Retractable tailwheel-type landing gear was installed. A research aircraft only, the He 178 was donated to the Air Museum in Berlin where it was destroyed during a wartime air raid.

Heinkel He 178

Specification
 MODELHe-178
 CREW1
 ENGINE1 x Heinkel-Hirth He S 3B, 4.9kN
 WEIGHTS
  Take-off weight1998 kg4405 lb
  Empty weight1620 kg3572 lb
 DIMENSIONS
  Wingspan7.2 m24 ft 7 in
  Length7.5 m25 ft 7 in
  Height2.1 m7 ft 11 in
  Wing area9.1 m297.95 sq ft
 PERFORMANCE
  Max. speed700 km/h435 mph
  Cruise speed580 km/h360 mph

3-View
Heinkel He 178A three-view drawing (1000 x 635)
