L.V.G. D 10
1916
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Germany / L.V.G.

L.V.G. D 10

There is no text information for this aircraft at the moment.

3-View

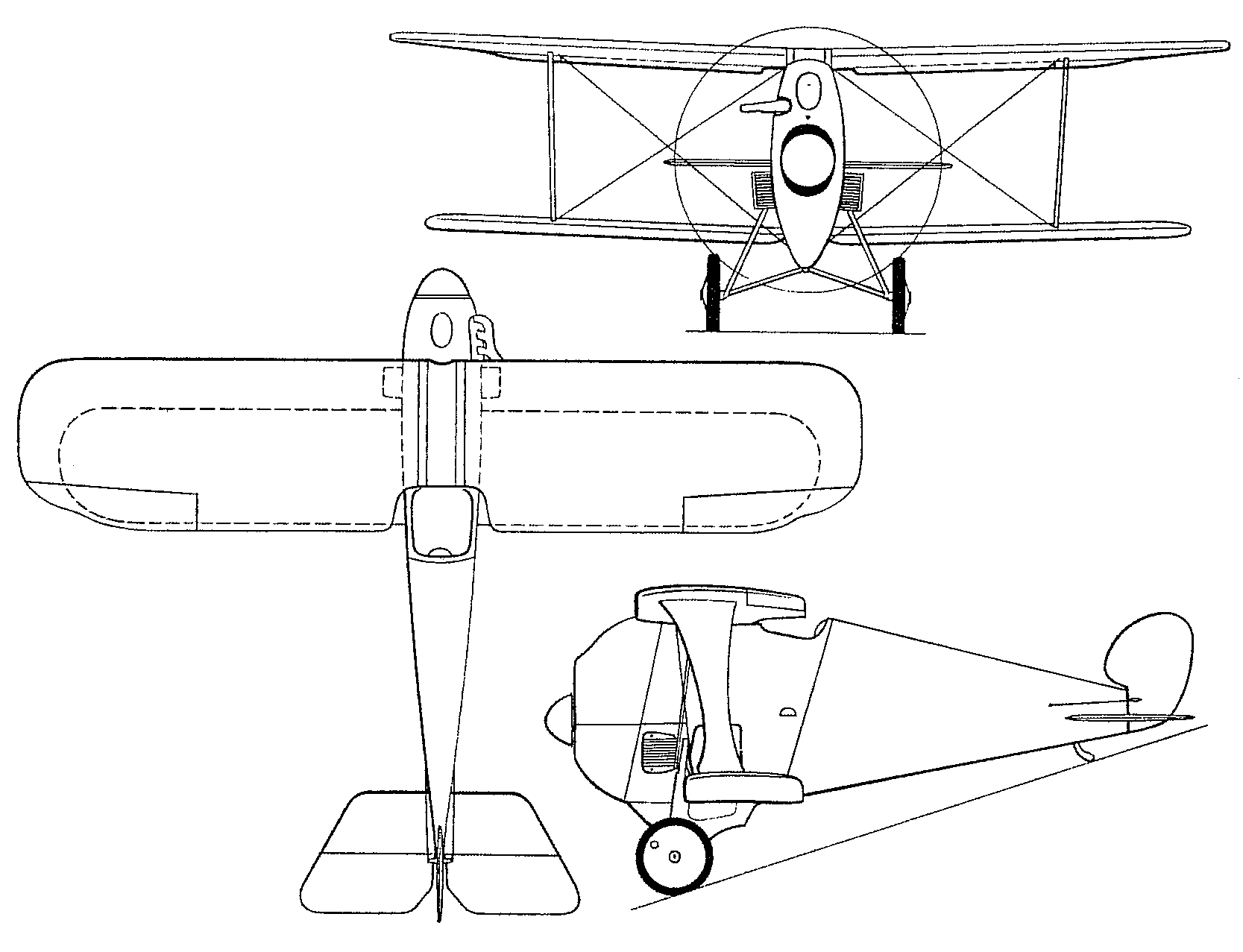

L.V.G. D 10A three-view drawing (1667 x 1277)


Specification
 MODELLVG D.10
 CREW1
 ENGINE1 x 120hp Mercedes D II
 DIMENSIONS
    Wingspan9.20 m30 ft 2 in
    Length7.40 m24 ft 3 in
    Height3.10 m10 ft 2 in
 ARMAMENT1 x 7.92mm

Comments
Barry, 23.05.2016

Featuring a Walfisch type fuselage the D10 was built of plywood strip in a semi monocoque form, and featuring very broad wing struts the D10 showed very poor flying qualities and only one was completed and no further production was proceeded with.
