L.V.G. D IV
1917
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Germany / L.V.G.

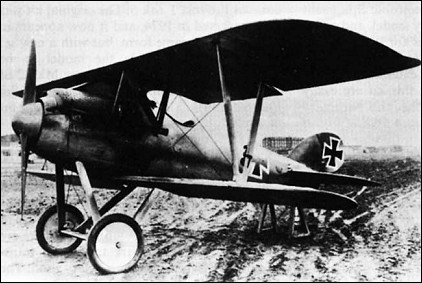

L.V.G. D IV

There is no text information for this aircraft at the moment.

3-View

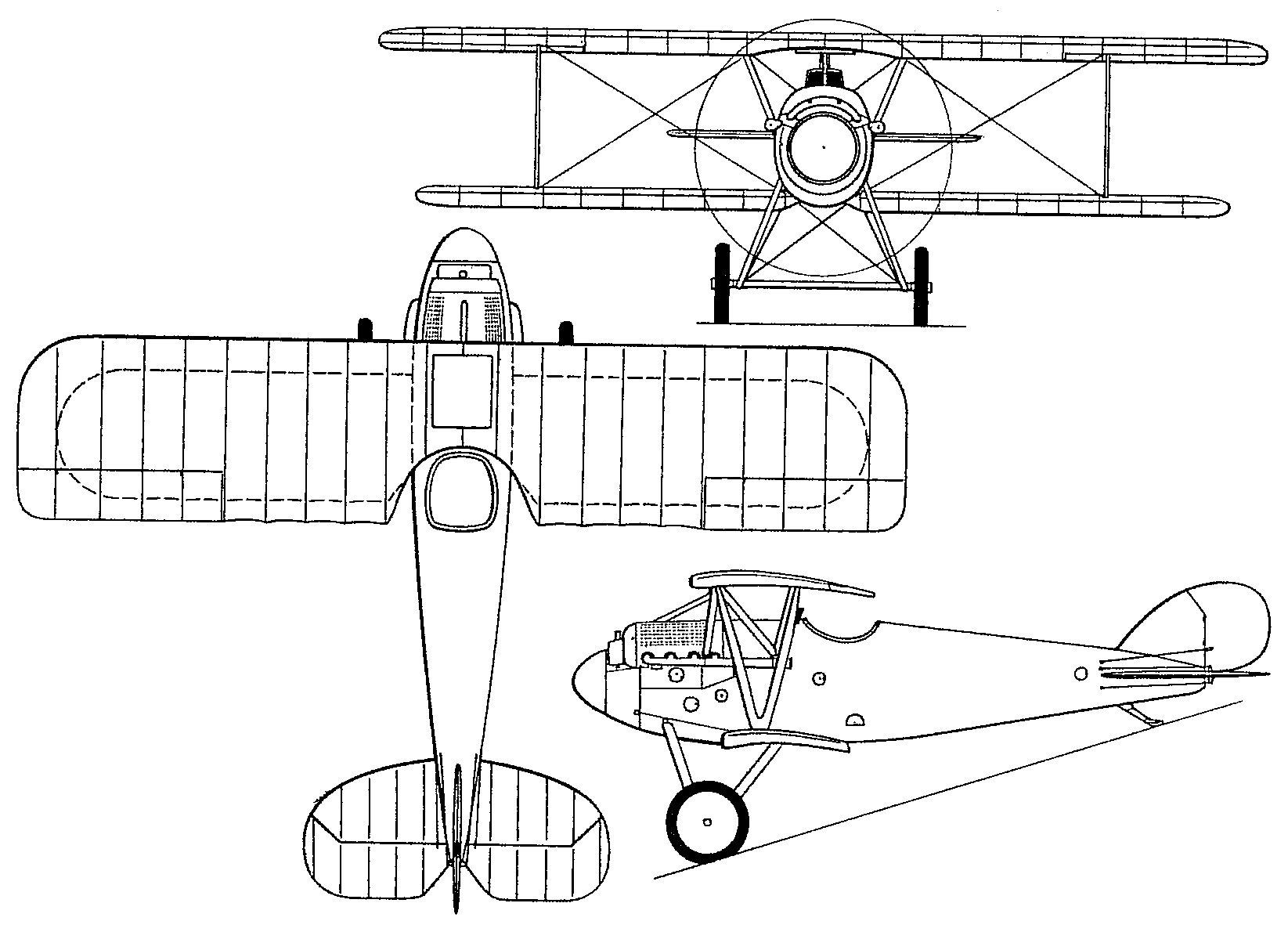

L.V.G. D IVA three-view drawing (1645 x 1190)


Specification
 MODELD.IV
 CREW1
 ENGINE1 x 185hp Benz Bz IIIbo
 WEIGHTS
    Take-off weight935 kg2061 lb
    Empty weight680 kg1499 lb
 DIMENSIONS
    Wingspan8.50 m28 ft 11 in
    Length6.28 m21 ft 7 in
    Height2.70 m9 ft 10 in
    Wing area18.06 m2194.40 sq ft
 PERFORMANCE
    Max. speed180 km/h112 mph
    Cruise speed155 km/h96 mph
 ARMAMENT2 x 7.92mm

Comments
Barry, 23.05.2016

Two prototypes were produced both being destroyed in accidents before any meaningful testing could be completed.
