Rohrbach Ro X Romar
1928
Back to the Virtual Aircraft Museum
  PASSENGER FLYING BOATVirtual Aircraft Museum / Germany / Rohrbach

Rohrbach Ro X Romar

The long-range passenger flying boat. The first prototype flew on August 7, 1928. 4 built

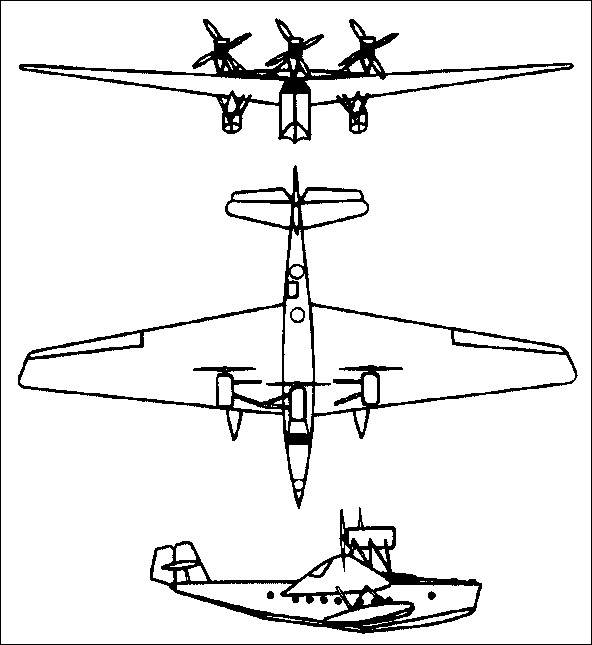

3-View
Rohrbach Ro X RomarA three-view drawing (592 x 645)


Specification
 MODELRo X "Romar"
 CREW4-5
 PASSENGERS12
 ENGINE3 x BMW VIUZ, 485kW
 WEIGHTS
    Take-off weight19000 kg41888 lb
    Empty weight9900 kg21826 lb
 DIMENSIONS
    Wingspan36.9 m121 ft 1 in
    Length22.0 m72 ft 2 in
    Height8.5 m28 ft 11 in
 PERFORMANCE
    Max. speed210 km/h130 mph
    Ceiling2800 m9200 ft
    Range w/max.fuel4000 km2486 miles

Comments
Barry, 13.01.2010

There were two models produced the Romar I (Werk Nrs 29,30 and 31), registration D-1693, D-1734, and D-1747 respectively. The Romar II Werk Nr 62 went to France on the 1st April 1931 as F-AKEM.
The difference in the models was that the Romar II had BMW VIaU engines driving through a Farman gearbox.

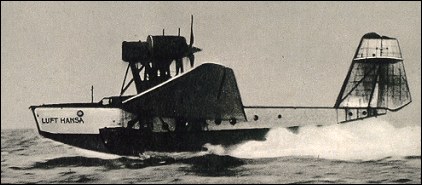

At some point the fin was changed on all models as can be seen in the photograph as opposed to that which is illustrated in the 3 view drawing. The 3 German aircraft, named "Hamburg", "Bremen" and "Lubeck" were all scrapped in 1933.
