Fokker D X
1921
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Holland / Fokker

Fokker D X

A cantilever parasol monoplane with a plywood-skinned wooden wing and a steel-tube fuselage, the D X single-seat fighter had begun life in Germany as the V 41. The partly-completed prototype was taken to the Netherlands, where, in 1921, it was completed with a 300hp Hispano-Suiza 8Fb eight-cylinder water-cooled engine in place of the 185hp BMW Ilia six-cylinder engine for which it had been originally intended. The prototype crashed as a result of wing flutter during a demonstration in Spain in 1922. Nevertheless, an order for 10 D X fighters was placed on behalf of the Aeronautica Militar Espanola, these being supplied during the course of 1923. In the same year, one example of the D X was supplied to Finland. Armament comprised two 7.92mm machine guns.

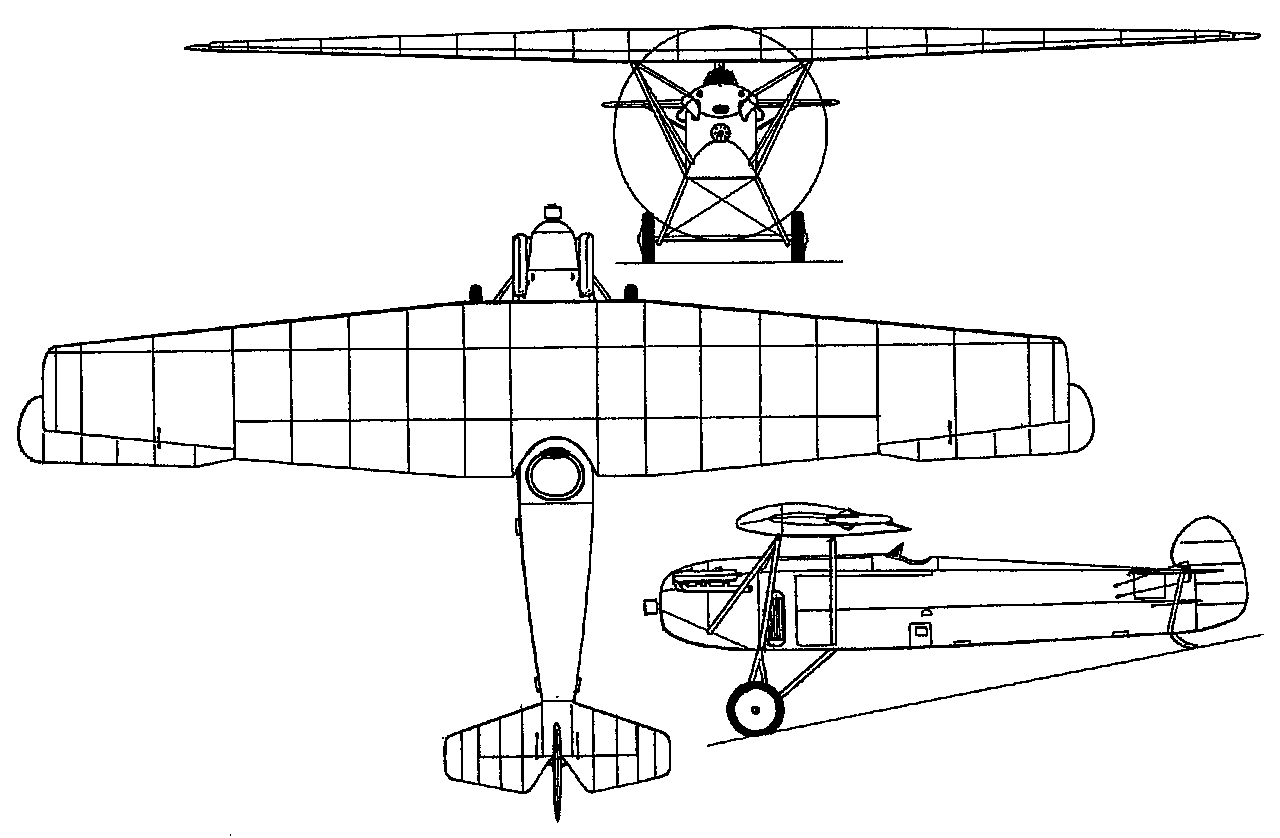

3-View
Fokker D XA three-view drawing (1280 x 838)


Specification
 WEIGHTS
    Take-off weight1246 kg2747 lb
    Empty weight860 kg1896 lb
 DIMENSIONS
    Wingspan13.75 m45 ft 1 in
    Length8.00 m26 ft 3 in
    Height3.00 m10 ft 10 in
 PERFORMANCE
    Max. speed225 km/h140 mph
