The first prototype flew on September 4, 1964. By 1989 a total of 251 aircraft were built including 51 improved "Kiran II"s.

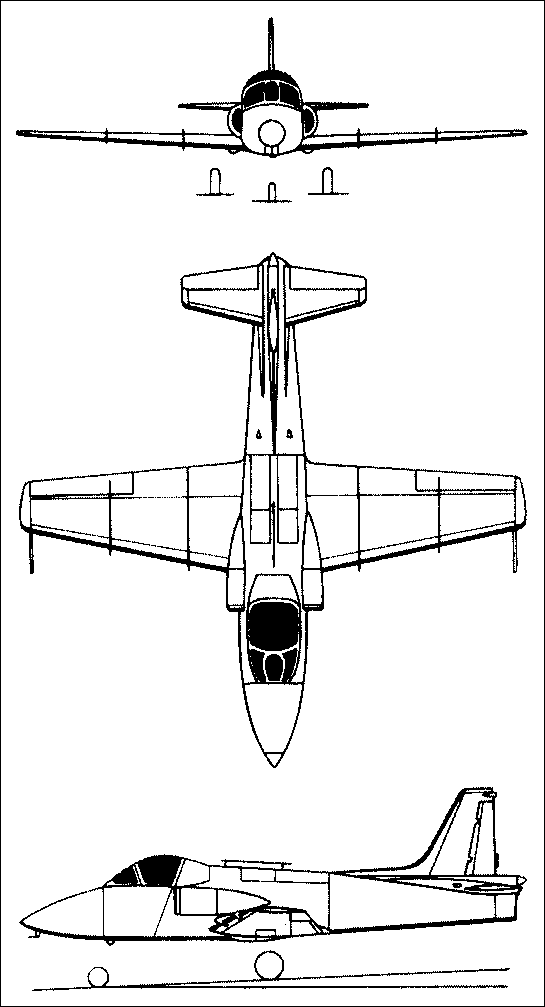

 | A three-view drawing (545 x 1007) |
| MODEL | HJT-16 "Kiran" I/IA |
| CREW | 2 |
| ENGINE | 1 x Rolls-Royce "Viper" Mk 11, 11.11kN |
| WEIGHTS |
| Take-off weight | 4235 kg | 9337 lb |
| Empty weight | 2560 kg | 5644 lb |
| DIMENSIONS |
| Wingspan | 10.7 m | 35 ft 1 in |
| Length | 10.6 m | 34 ft 9 in |
| Height | 3.63 m | 11 ft 11 in |
| Wing area | 19.0 m2 | 204.51 sq ft |
| PERFORMANCE |
| Max. speed | 695 km/h | 432 mph |
| Cruise speed | 9145 km/h | 5683 mph |
| ARMAMENT | 2 x 227kg bombs or 14 x 68mm unguided missiles |
|
