Ambrosini S.A.I.3
1937
Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / Italy / Ambrosini

Ambrosini S.A.I.3

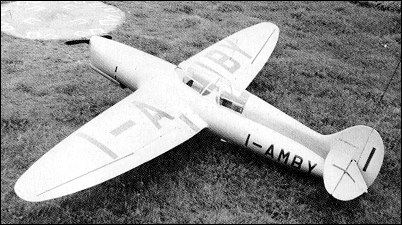

Designed as a two-seat light training and touring low-wing monoplane, the Ambrosini S.A.I.3 was an extremely graceful aircraft, with long-span elliptical wings, a deep rear fuselage and, unfortunately for the type's looks, a fixed and somewhat clumsy tailwheel type landing gear. The chosen powerplant was either a 63kW Fiat A.50 radial or 97kW Alfa Romeo A.110 inverted inline piston engine, the latter enclosed within a close cowling of nice proportions. Small batches of the S.A.I.3 were built, some of them with an enclosed cabin in place of the more common tandem open cockpits. Not surprisingly, the more powerful Alfa Romeo-engined model had much superior performance, despite a maximum take-off weight increased by 40kg to 830kg; maximum speed rose to 230km/h, service ceiling to 5200m and range to 680km.


Specification
 MODELS.A.I.3
 ENGINE1 x Fiat A.50 piston engine, 63kW
 WEIGHTS
    Take-off weight790 kg1742 lb
    Empty weight550 kg1213 lb
 DIMENSIONS
    Wingspan10.45 m34 ft 3 in
    Length7.05 m23 ft 2 in
    Height2.8 m9 ft 2 in
    Wing area14 m2150.69 sq ft
 PERFORMANCE
    Max. speed200 km/h124 mph
    Cruise speed170 km/h106 mph
    Ceiling4000 m13100 ft
    Range620 km385 miles
