S.A.I. (Ambrosini) S.S.4

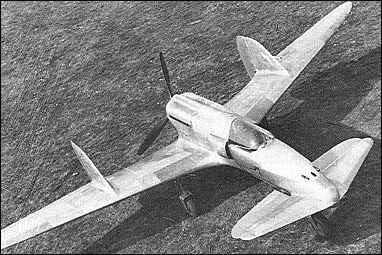

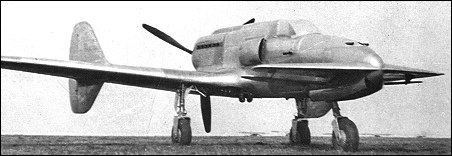

The first fighter monoplane of canard or tail-first configuration and one of the first with a retractable nosewheel undercarriage, the single-seat S.S.4 designed by Ing Sergio Stefanutti and built by the Societa Aeronautica Italiana Ing A Ambrosini was among the most innovative warplanes of its time. Of all-metal construction and powered by a 960hp liquid-cooled 12-cylinder Isotta-Fraschini Asso XI R.C.40 engine driving a threebladed variable-pitch pusher propeller, the S.S.4 had a proposed armament of one 30mm and twin 20mm cannon. The sole prototype was flown for the first time on 7 March 1939, but was destroyed during its second flight on the following day, when, after the starboard aileron separated, the wing developed a high amplitude oscillation and the aircraft entered a dive and crashed. No further development was undertaken. The following data are based on manufacturer's estimates.

S.A.I. (Ambrosini) S.S.4

Specification
 WEIGHTS
  Take-off weight2446 kg5393 lb
  Empty weight1800 kg3968 lb
 DIMENSIONS
  Wingspan12.32 m40 ft 5 in
  Length6.74 m22 ft 1 in
  Height2.48 m8 ft 2 in
  Wing area17.50 m2188.37 sq ft
 PERFORMANCE
  Max. speed540 km/h336 mph

3-View

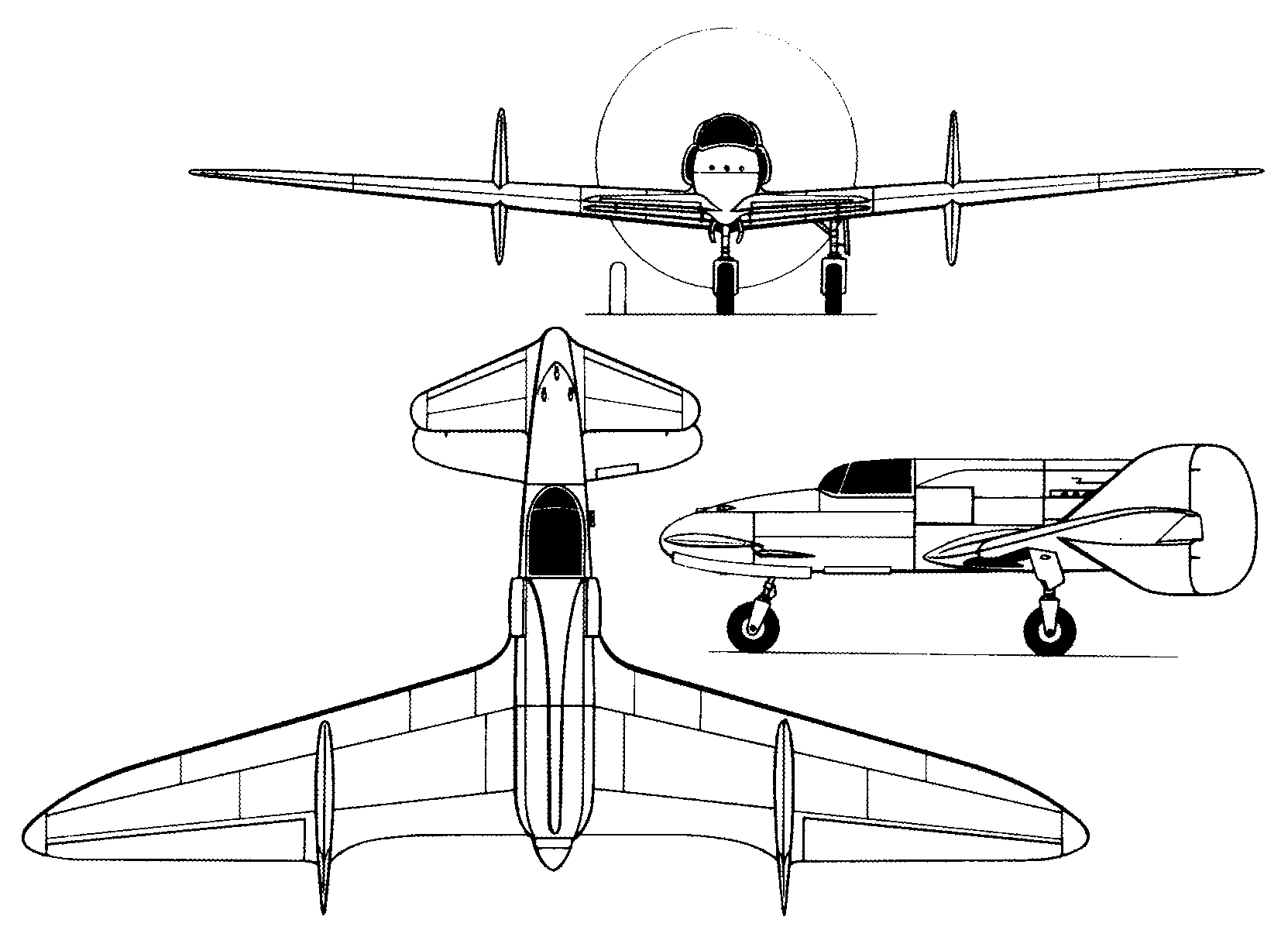

S.A.I. (Ambrosini) S.S.4A three-view drawing (1663 x 1223)

Comments
lxbfYeaa, e-mail, 14.03.2024 05:28

20

reply

Dennis Karoleski, e-mail, 27.07.2012 00:31

The ejected shell casings would have been a serious problem for the propeller if tests had been taken that far. Or were they kept on board?

reply

Howard Littman, e-mail, 17.01.2012 21:28

The pusher propeller fighter designs at this time all had the same escape system. There was a small explosive charge in the propeller hub to blow the propeller off if the pilot had to bail out.

reply

Klaatu, e-mail, 18.04.2011 04:27

One major flaw in this design: How was the pilot supposed to get out in case of emergency? Ejection seats hadn't been invented yet. Same objection applies to Japan's Kyushu J7W1 Shinden. Of course, Japanese pilots considered themselves to be expendable, but I don't imagine the Italians would have felt quite the same way about it!

reply

a.casais, e-mail, 10.12.2010 14:14

It looks like starship from the "Star wars" very ahead on time like the Shiden jap.

reply

Howard LIttman, e-mail, 29.08.2007 21:40

The most innovative thing about this aircraft is the double canard surfaces, one fixed and one movable. For propeller driven aircraft, without power boosted controls, Stefanutti may have been on to something, It's unfortunate (or possibly fortunate for the Allies at the time) that the aileron hinges were not made stronger. This looks like a very promising design.

reply

Jon McLaren, e-mail, 31.03.2007 11:27

Refer to Kyushu J7W1 Shinden...same thoughts re canard mounted fixed gear and seating / fuselage; with high wing above eng cowl for gravity fuel flow; and vert fins ext downward with fixed gear.

reply

Stefano G DE FILIPPIS, e-mail, 29.12.2006 23:07

HY I'M VERY INTERESTED ON ALL THE MATERIAL ABOUT THIS SPECIFIC AIRCRAFT. I'M WORKING ON A FLYING REPLICA 1:1 OF THE PLANE BUT IT'S VERY DIFFICULT TO FIND ANY BLUEPRINTS OR SKETCHES. SO IF SOME ONE CAN HELP....IT'S HIGHLY APPRECIATED.
BEST WISHES FOR THE NEW YEAR INCOMING. S.G. DE FILIPPIS

reply

Jon McLaren, e-mail, 31.03.2007 11:15

Re: Amrosini SS.4 If big gen av makers could design this with raked faired gear on tips of canard (Quickie Q2) and mount all of the vertical stabilators down from wing with fixed gear(= 4 wheel.) Move pilot closer to nose, with side x side seats aft, within an airfoil shape fuselage..?

reply
