Ansaldo A.C.2

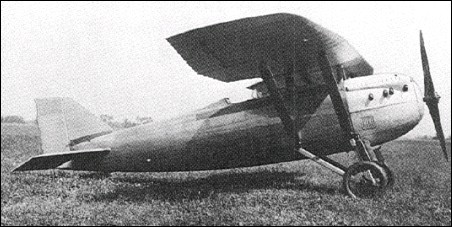

In 1924, Aeronautica Ansaldo SA acquired manufacturing rights in the Dewoitine D.I single-seat fighter, assembling one example as the A.C.1. This served as a basis for a modified version of the fighter with marginally smaller overall dimensions which entered production as the A.C.2 in 1925. Powered by a 300hp Hispano- Suiza HS 42-8 eight-cylinder water-cooled engine and carrying an armament of two synchronised 7.7mm Vickers guns, the A.C.2 was of metal construction and 112 examples were delivered to the Regia Aeronautica during 1925.

3-View

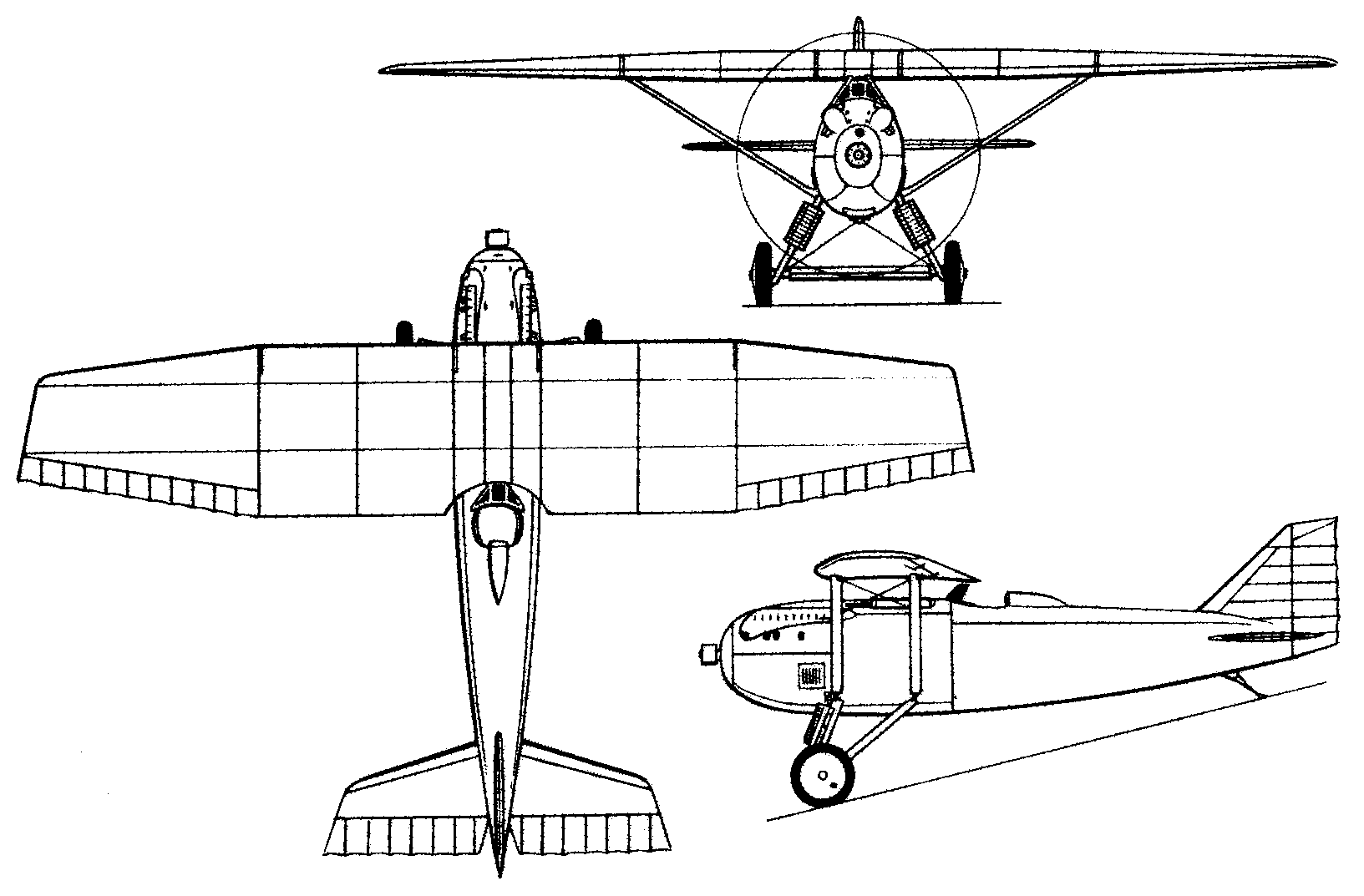

Ansaldo A.C.2A three-view drawing (1633 x 1073)


Specification
 WEIGHTS
    Take-off weight1144 kg2522 lb
    Empty weight829 kg1828 lb
 DIMENSIONS
    Wingspan10.88 m36 ft 8 in
    Length7.38 m24 ft 3 in
    Height2.79 m9 ft 2 in
    Wing area20.00 m2215.28 sq ft
 PERFORMANCE
    Max. speed242 km/h150 mph
