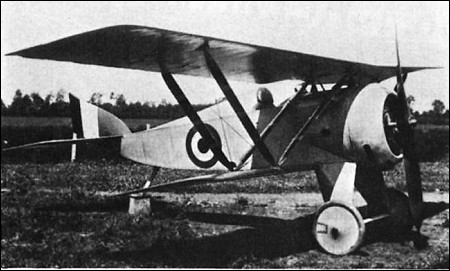

Macchi M.14

1918

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Italy / Macchi

Macchi M.14

There is no text information for this aircraft at the moment.

3-View
Macchi M.14A three-view drawing (1667 x 1123)

Specification
 MODEL.14
 CREW1
 ENGINE1 x 110hp Le Rhone 9J
 WEIGHTS
  Take-off weight640 kg1411 lb
  Empty weight440 kg970 lb
 DIMENSIONS
  Wingspan8.20 m27 ft 11 in
  Length5.65 m19 ft 6 in
  Height2.62 m9 ft 7 in
  Wing area16.60 m2178.68 sq ft
 PERFORMANCE
  Max. speed182 km/h113 mph
  Cruise speed152 km/h94 mph
  Rate of climb286 m/min950 ft/min
 ARMAMENT2 x 7.7mm

Comments
Barry, 31.05.2016 16:34

The first non sea plane fighter to be produced by Macchi, the Tonini designed prototype crashed in June 1918. A further 10 were produced, none seeing service as a fighter instead seeing service as advanced trainers. It is believed one became a civilian aircraft after it's service life.

reply
