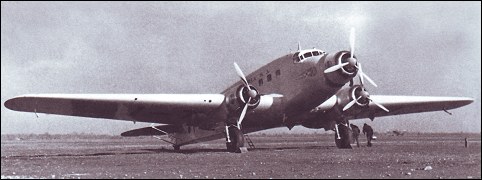

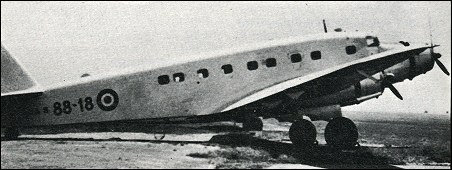

A twenty-four-seat passenger transport powered by three 559kW Alfa-Romeo 126RC.34 radial engines. The S.M.75 prototype flew in November 1937. Production for military and civil use continued until 1943, 90 machines being delivered to the Italian authorities and five exported to Hungary. The latter were finally converted for military use with dorsal and ventral gun turrets. A number of Italian S.M.75s were also militarised.
| MODEL | S.M.75 |
| WEIGHTS |
| Take-off weight | 13000 kg | 28660 lb |
| Operating empty weight | 9500 kg | 20944 lb |
| DIMENSIONS |
| Wingspan | 29.68 m | 97 ft 5 in |
| Length | 21.6 m | 70 ft 10 in |
| Height | 5.1 m | 16 ft 9 in |
| Wing area | 118.6 m2 | 1276.60 sq ft |
| PERFORMANCE |
| Max. speed | 363 km/h | 226 mph |
| Ceiling | 6250 m | 20500 ft |
| Range | 1720 km | 1069 miles |
