Nardi FN.333
1952
Back to the Virtual Aircraft Museum
  AMPHIBIANVirtual Aircraft Museum / Italy / Nardi

Nardi FN.333

The first prototype flew on December 4, 1952.

3-View

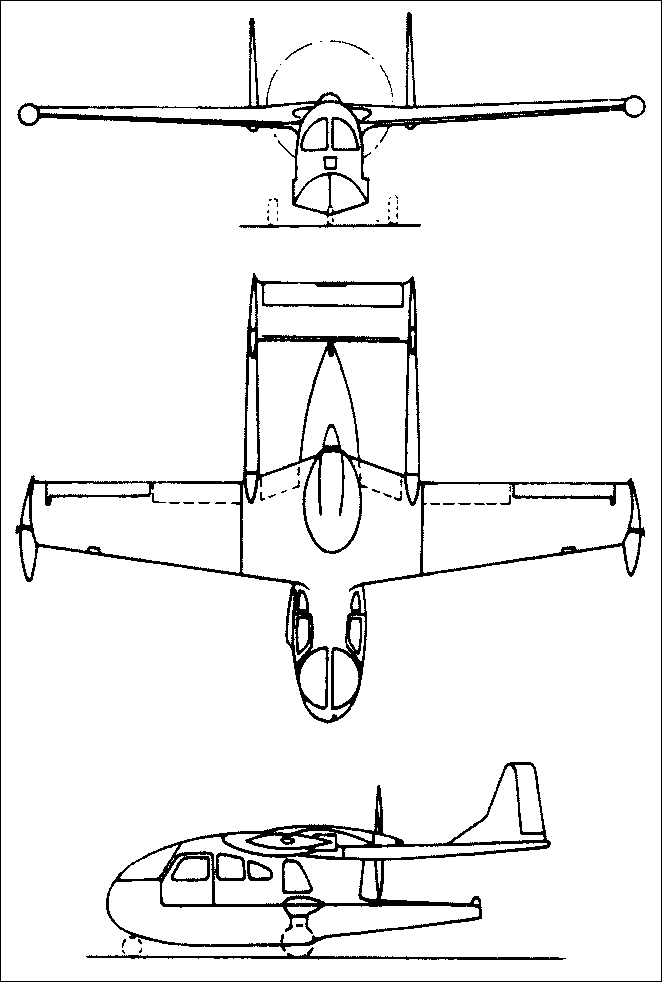

Nardi FN.333A three-view drawing (662 x 982)


Specification
 CREW4
 ENGINE1 x Continental IO-470-P, 185kW
 WEIGHTS
    Take-off weight1485 kg3274 lb
    Empty weight1030 kg2271 lb
 DIMENSIONS
    Wingspan10.4 m34 ft 1 in
    Length7.4 m24 ft 3 in
    Height3.2 m11 ft 6 in
    Wing area15.0 m2161.46 sq ft
 PERFORMANCE
    Max. speed285 km/h177 mph
    Cruise speed264 km/h164 mph
    Ceiling5600 m18350 ft
    Range w/max.fuel1300 km808 miles
    Range w/max.payload1000 km621 miles

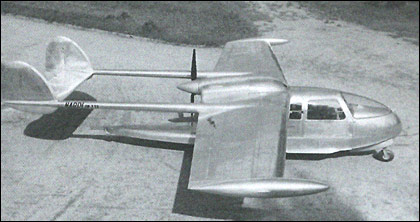

Nardi FN.333 prototype

Comments
Barry, 05.09.2016

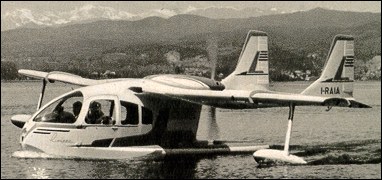

Later known as the Riviera, the first FN.333 flew 4th December 1952 and was a three seater powered by an under powered Continental engine. The second aircraft flew on the 8th December 1954 powered by a more powerful engine but still with only accommodation for three. Owing to a shortage of funds Nardi were not able to complete a third more definitive model until 14th October 1956 powered by the Continental engine noted above. Lacking further funds the design and manufacturing rights were sold to SIAI Marchetti in March 1959. A total of some 29 were made, most of which were sold in the U.S.A., but examples were sold to Australia, Norway and Sweden. There are still some Riviera's extent today in the U.S.

bothman, 20.06.2011

would like to talk to the owner or e-the owner if possable . I would like to look at this plane closer , we are in Colorado ....
Thanks Kirby

, 20.06.2011

Nardi FN.333
1952

Kirby Cannell, 01.12.2006

Very interesting so the annual is being done curently ? I am interested and would like to talk to the owner or e-the owner if possable . I would like to look at this plane closer , we are in Colorado ....
Thanks Kirby
