SIAI-Marchetti S.211
1981
Back to the Virtual Aircraft Museum
  TRAINER, LIGHT ATTACKVirtual Aircraft Museum / Italy / SIAI-Marchetti

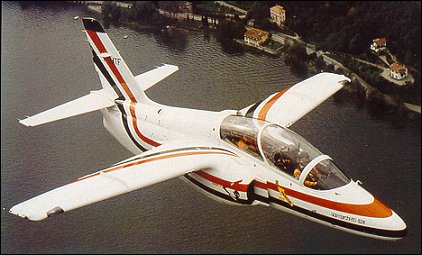

SIAI-Marchetti S.211

The first prototype flew on April 10, 1981. Enetered production in 1984.

3-View

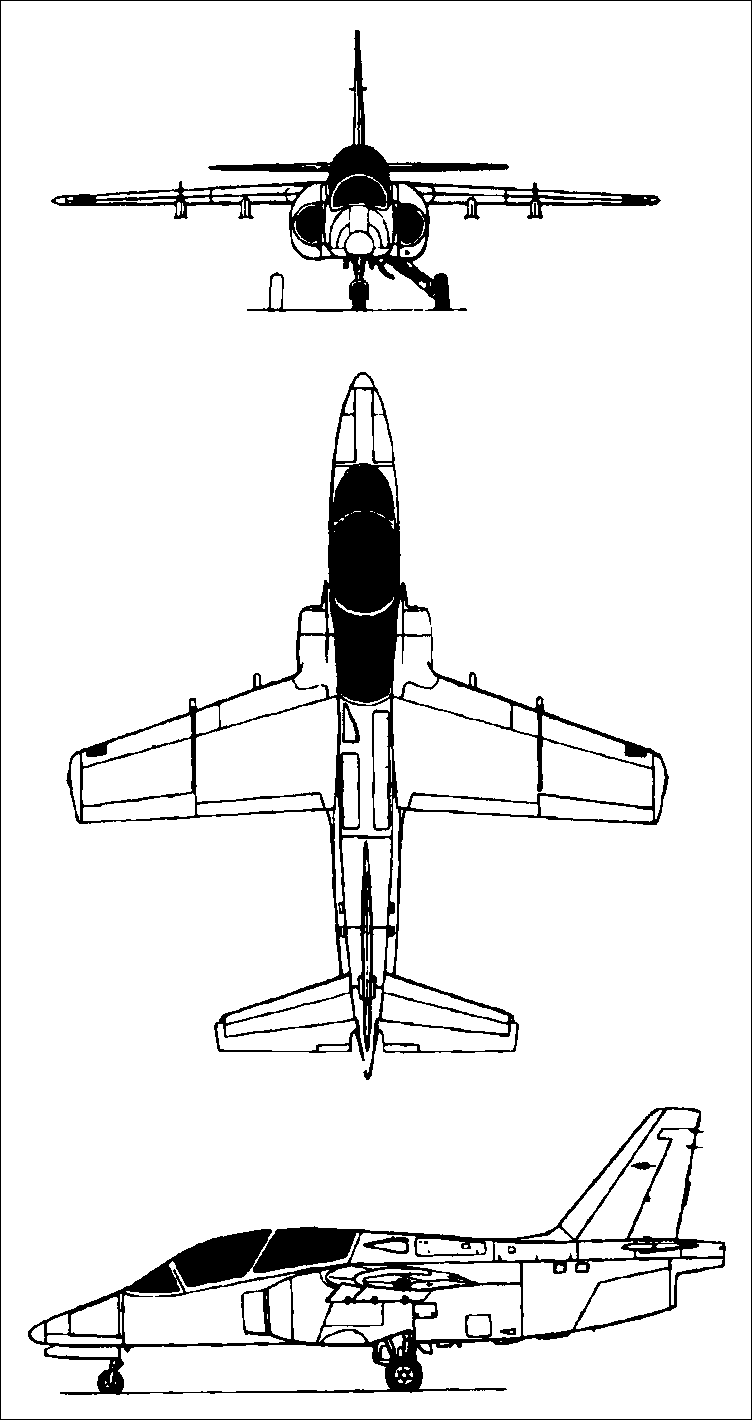

SIAI-Marchetti S.211A three-view drawing (752 x 1420)


Specification
 MODELS.211
 CREW1-2
 ENGINE2 x Pratt & Whitney Canada JT15D-4C turbofans, 11.12kN
 WEIGHTS
    Take-off weight2500 kg5512 lb
    Loaded weight1615 kg3560 lb
 DIMENSIONS
    Wingspan8.43 m28 ft 8 in
    Length9.31 m31 ft 7 in
    Height3.8 m12 ft 6 in
    Wing area12.6 m2135.63 sq ft
 PERFORMANCE
    Max. speed665 km/h413 mph
    Ceiling12190 m40000 ft
 ARMAMENT600kg of weapons

Comments
Barry, 15.03.2017

Firstly this is a single engine training aircraft not two. It was never used by Aeronautica Militaire (Italian Air Force), but it was sold to the Philippine Air Force (PAF) who took 25 including 15 delivered as kits for local assembly. The Republic of Singapore Air Force (RSAF) took 32 including 24 supplied as kits. Later they obtained a further two from Haiti (q.v.) as attrition replacements. The aircraft were flown by 130 and 131 squadron both based in Australia. In fact 21 were retired and sold off privately to the Australian I.A.P. Group who in turn sold off some 15 to the private market in Australia. Four were purchased by the Haitian Air Force in 1985 which retired them on 23rd April 1990 and put them up for sale. Two were used in co-operation with Grumman, later Northrop Grumman, as an entry into the U.S.A.F. JPATS, coming second to the Boeing/Pilatus entry.

Paul Scott, 23.06.2016

Neat little 'plane from Italy.

sven., 29.12.2011

Only one engine not two as in the text.

Michael Collins, 29.12.2011

File:Lynn Garrison and crew with Haitian Corps d'Aviation Marchetti S-211 prior to flight in 1990.jpg
From Wikipedia, the free encyclopedia

reynaldo a hizon, 11.04.2009

please send me some picture of s211 aircraft,,and the location of servicing during pre flight ,,i want to be familiar on this aircraft i need and i plan to work this kind of aircraft thank you very much,.

Robert Morgan, 26.06.2008

Would you like photos of the Haitian SF-260T and S-211??
If so, how do I do I send them.

Regards,
Morgan

steph, 20.07.2007

its awsum n one day i wana be able 2 fly it!
