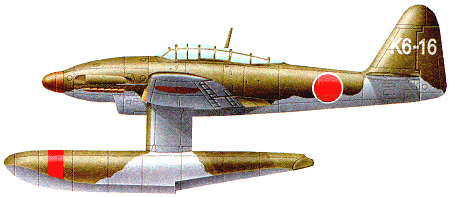

Aichi M6A Seiran

1943


SUBMARINE-BASED SEAPLANE	Virtual Aircraft Museum / Japan / Aichi

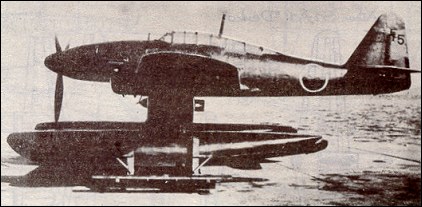

The first prototype flew in November 1943. 20 built.

Specification

MODEL	M6A1
CREW	2
ENGINE	1 x "Atsuta-32", 1050kW
WEIGHTS
Take-off weight	4040-4445 kg	8907 - 9800 lb
Empty weight	3300 kg	7275 lb
DIMENSIONS
Wingspan	12.26 m	40 ft 3 in
Length	11.64 m	38 ft 2 in
Height	4.58 m	15 ft 0 in
Wing area	27.0 m²	290.63 sq ft
PERFORMANCE
Max. speed	430 km/h	267 mph
Cruise speed	300 km/h	186 mph
Ceiling	9900 m	32500 ft
Range	1200 km	746 miles
ARMAMENT	1 x 13mm machine-gun, 850-kg torpedo or 1 x 800-kg bomb or 2 x 250-kg bombs

3-View

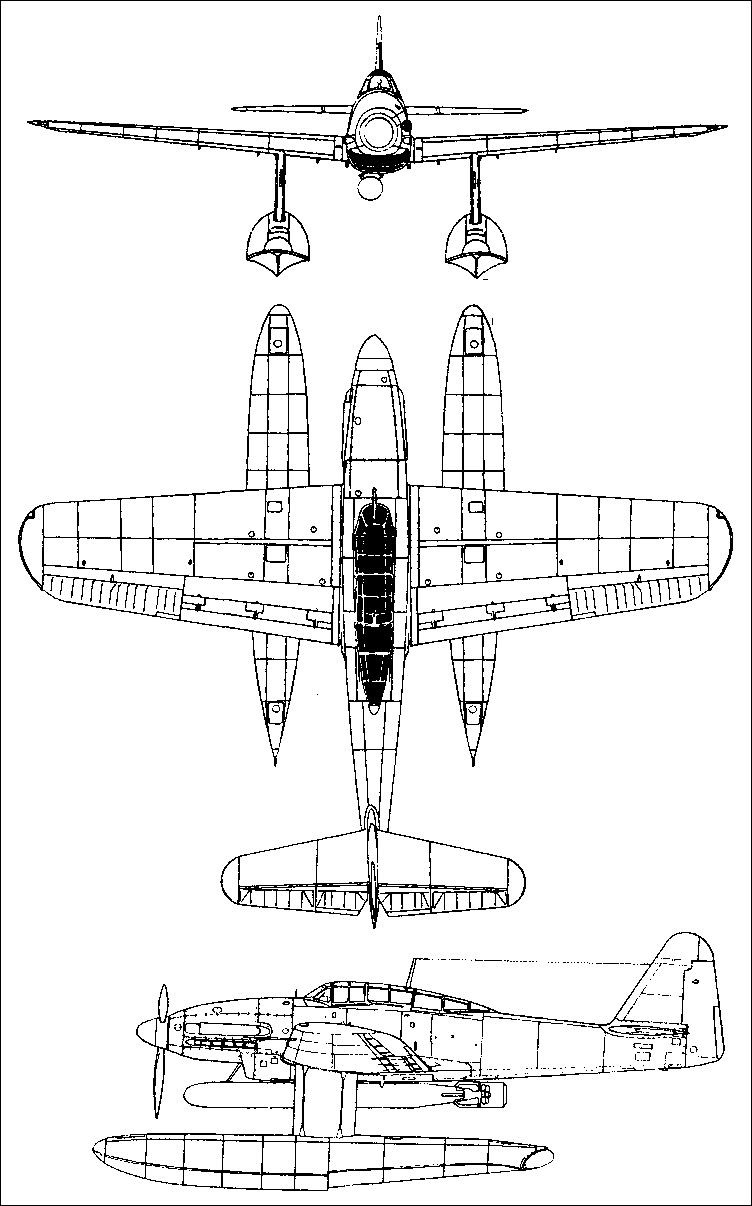

A three-view drawing (752 x 1206)

Comments
