The first prototype flew in 1943. 3 built.

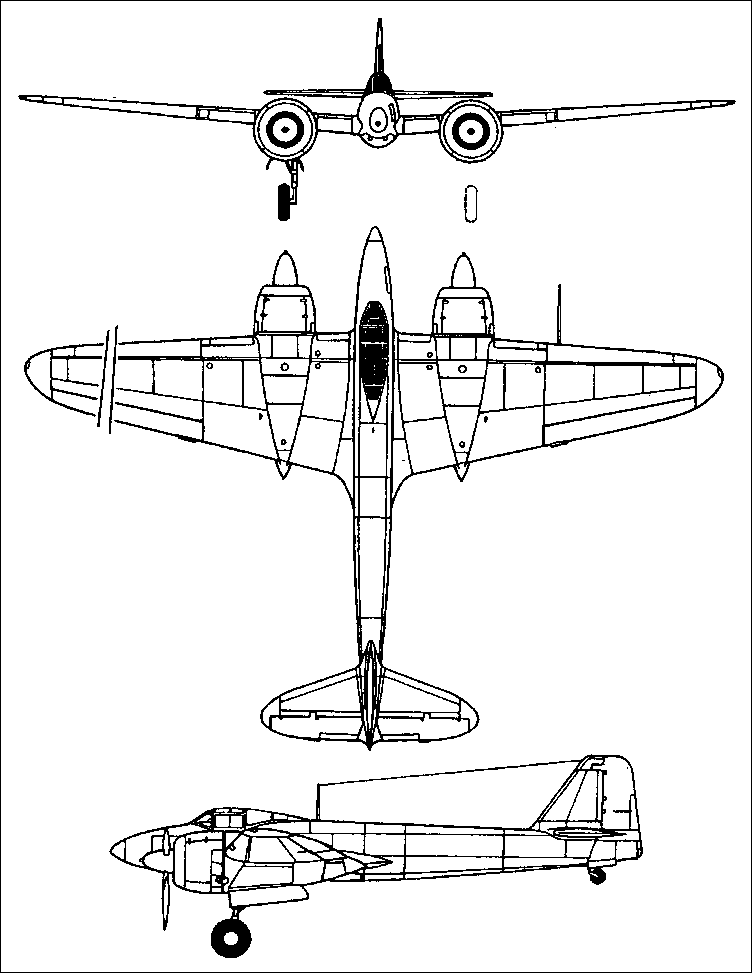

 | A three-view drawing (752 x 973) |
| MODEL | Ki-96 |
| CREW | 1 |
| ENGINE | 2 x Mitsubishi Ha-112-II, 1125kW |
| WEIGHTS |
| Take-off weight | 6000 kg | 13228 lb |
| Empty weight | 4550 kg | 10031 lb |
| DIMENSIONS |
| Wingspan | 15.57 m | 51 ft 1 in |
| Length | 11.45 m | 37 ft 7 in |
| Height | 3.7 m | 12 ft 2 in |
| Wing area | 34 m2 | 365.97 sq ft |
| PERFORMANCE |
| Max. speed | 600 km/h | 373 mph |
| Ceiling | 11500 m | 37750 ft |
| Range | 1600 km | 994 miles |
| ARMAMENT | 1 x 37mm cannon, 2 x 20mm cannons |
| Barry, 28.05.2009 Whilst I understand Mick Dunnes summation on the performance of this aeroplane, a lot more has to be considered rather than just power to weight ratios. The performance is not dissimilar to the DeHavilland DH98 Mosquito which was of similar size and weight and this was one of the most outstanding aircraft of WWII, so I can only summise that the Japanese had other problems other than speed. | | Mick Dunne, hotideas(@)hotmail.com, 23.11.2008 I will NEVER believe that this little sucker couldn't do any better than 373mph! Makes no sense whatever! 3,000hp in a 6 ton airframe as clean as this??? NEVERRRRR!
I think the Japanese were very modest about performance claims for their aircraft (not being as obsessed as the Americans for wanting to be the guys with the fastest stuff in the sky!) |
|
