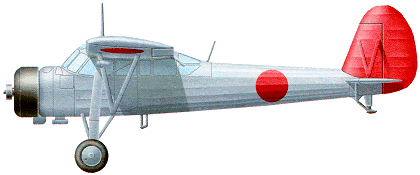

Kokusai Ki-76 STELLA

The first prototype flew in May 1941.

Kokusai Ki-76 STELLA


Specification
 MODELKi-76
 CREW2
 ENGINE1 x Hitachi Ha-42, 230kW
 WEIGHTS
    Take-off weight1530-1620 kg3373 - 3572 lb
    Empty weight1110 kg2447 lb
 DIMENSIONS
    Wingspan15 m49 ft 3 in
    Length9.56 m31 ft 4 in
    Height2.9 m10 ft 6 in
    Wing area29.4 m2316.46 sq ft
 PERFORMANCE
    Max. speed178 km/h111 mph
    Ceiling5630 m18450 ft
    Range750 km466 miles
 ARMAMENT1 x 7.7mm machine-guns

3-View
Kokusai Ki-76 STELLAA three-view drawing (750 x 886)

Kokusai Ki-76 STELLA

Comments
Barry, 03.06.2016

Similar to but not the same as the Fiesler Storch, the Kokusai Ki-76 featured Fowler flaps in place of the slotted flaps on the German machine. Some 937 were produced and proved successful when measured against the Fi156. Finally retired in 1945 from IJA service some were used after the war by the Royal Thai Air Force. In addition to the armament noted they were equipped with 2 x 60 lb depth charges when flying from the escort carrier "Akitsu Maru".

Martijn., 03.12.2015

Looks like and developted from the fieseler 156 storch , I LOVE IT . Thanks for posting , greetings .
