Nakajima G5N Shinzan / LIZ

1941

Back to the Virtual Aircraft Museum
  LONG-RANGE BOMBERVirtual Aircraft Museum / Japan / Nakajima

Nakajima G5N Shinzan / LIZ

The first prototype flew on April 10, 1941. 7 built.

Nakajima G5N Shinzan / LIZ

Specification
 MODELG5N1
 CREW7
 ENGINE4 x Nakajima NK7A "Mamoru-11", 1400kW
 WEIGHTS
  Take-off weight28150-32000 kg62060 - 70548 lb
  Empty weight20100 kg44313 lb
 DIMENSIONS
  Wingspan42.12 m138 ft 2 in
  Length31.02 m102 ft 9 in
  Wing area201.8 m22172.16 sq ft
 PERFORMANCE
  Max. speed420 km/h261 mph
  Cruise speed370 km/h230 mph
  Ceiling7450 m24450 ft
  Range4260 km2647 miles
 ARMAMENT2 x 20mm cannons, 4 x 7.7mm machine-guns, 2000-4000kg of bombs

3-View

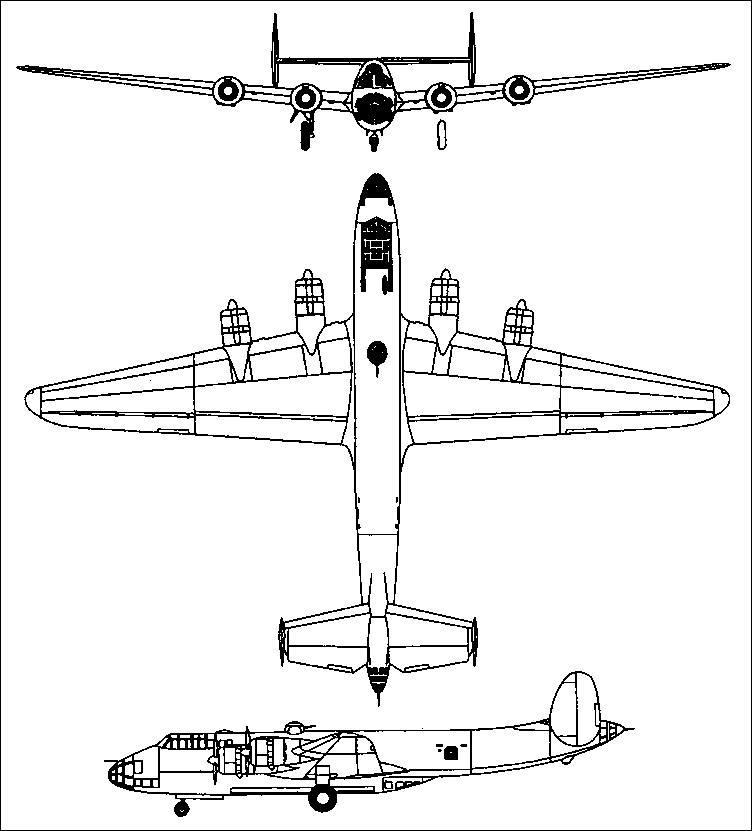

Nakajima G5N Shinzan / LIZA three-view drawing (752 x 831)
