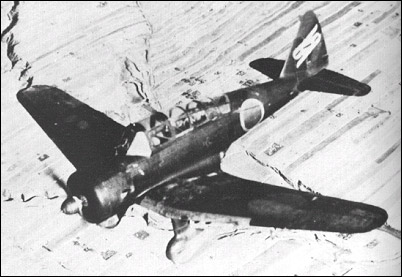

Tachikawa Ki-36 IDA

First flown in prototype form on 20 April 1938, the Tachikawa Ki-36 was a cantilever low-wing monoplane of all-metal basic structure, covered by a mix of light alloy and fabric. Landing gear was of fixed tailwheel type, the main units enclosed in speed fairings, and power was provided by a 336kW Hitachi Ha-13 radial engine. The two-man crew was enclosed by a long 'greenhouse' canopy and both men had good fields of view, that of the observer being improved by clear-view panels in the floor. The type was ordered into production in November 1938 as the Army Type 98 Direct Co- Operation Plane. Generally similar to the prototypes, the type was armed with two 7.7mm machine guns and introduced the more powerful Hitachi Ha-13a engine. When construction ended in January 1944, a total of 1,334 had been built by Tachikawa (862) and Kawasaki (472).

The handling characteristics and reliability of the Ki-36 made the army realize that it was ideal for use as an advanced trainer, resulting in development of the Ki-55, intended specifically for this role and having armament reduced to a single forward- firing machine-gun. Following the testing of a prototype in September 1939, the army ordered this aircraft as the Army Type 99 Advanced Trainer; when production was terminated in December 1943 a total of 1,389 had been built by Tachikawa (1,078) and Kawasaki (311).

Both versions were allocated the Allied codename 'Ida', and the Ki-36 was first deployed with considerable success in China. However, when confronted by Allied fighters at the beginning of the Pacific War it was found to be too vulnerable, being redeployed in China where it was less likely to be confronted by such aircraft. It was also considered suitable for kamikaze use in the closing stages of the war, being modified to carry internally a bomb of up to 500kg.

Tachikawa Ki-36 IDA


Specification
 MODELKi-36
 CREW2
 ENGINE1 x Hitach Ha-13a, 380kW
 WEIGHTS
    Take-off weight1660 kg3660 lb
    Empty weight1247 kg2749 lb
 DIMENSIONS
    Wingspan11.8 m39 ft 9 in
    Length8 m26 ft 3 in
    Height3.64 m12 ft 11 in
    Wing area20 m2215.28 sq ft
 PERFORMANCE
    Max. speed348 km/h216 mph
    Cruise speed236 km/h147 mph
    Ceiling8150 m26750 ft
    Range1235 km767 miles
 ARMAMENT2 x 7.7mm machine-guns, 150kg of bombs

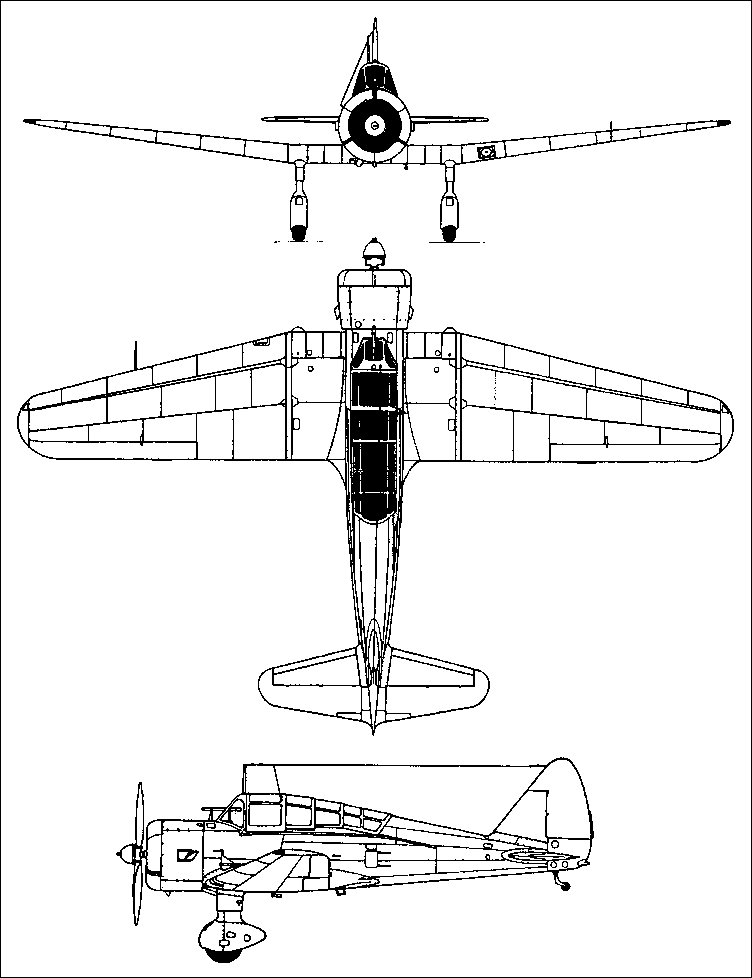

3-View
Tachikawa Ki-36 IDAA three-view drawing (752 x 978)

Comments
Trervor Webb, 09.02.2012

Near the end of the was, a development of the Ki-36 was planned. It was designated Ki-72, had a retracting undercarriage and a 600 hp (447 kW) Hitachi Ha-38 engine. None were completed by the end of the war.

huaren, 20.06.2011

The last surviving Tachikawa Ki-36 Ida can be found at the Royal Thai Air Force Museum at Don Muang Airport, Bangkok,

, 20.06.2011

Tachikawa Ki-36 IDA

ABC, 23.10.2007

The one in Thailand is a Ki-55, and it's not the last one in the world. There is also one in Beijing, china

Roger Ward, 20.12.2006

The last surviving Tachikawa Ki-36 Ida can be found at the Royal Thai Air Force Museum at Don Muang Airport, Bangkok, Thailand. http://www.rtaf.mi.th/museum/BLDG2-2.HTM
