The first prototype flew on May 8, 1945. 1 built.
| ENGINE||1 x Aichi-10 Ha-70, 2550kW|
| Take-off weight||8100-9400 kg||17858 - 20724 lb|
| Empty weight||6015 kg||13261 lb|
| Wingspan||14.0 m||46 ft 11 in|
| Length||13.05 m||43 ft 10 in|
| Height||4.24 m||14 ft 11 in|
| Wing area||34.0 m2||365.97 sq ft|
| Max. speed||715 km/h||444 mph|
| Cruise speed||460 km/h||286 mph|
| Ceiling||11700 m||38400 ft|
| Range||3600 km||2237 miles|

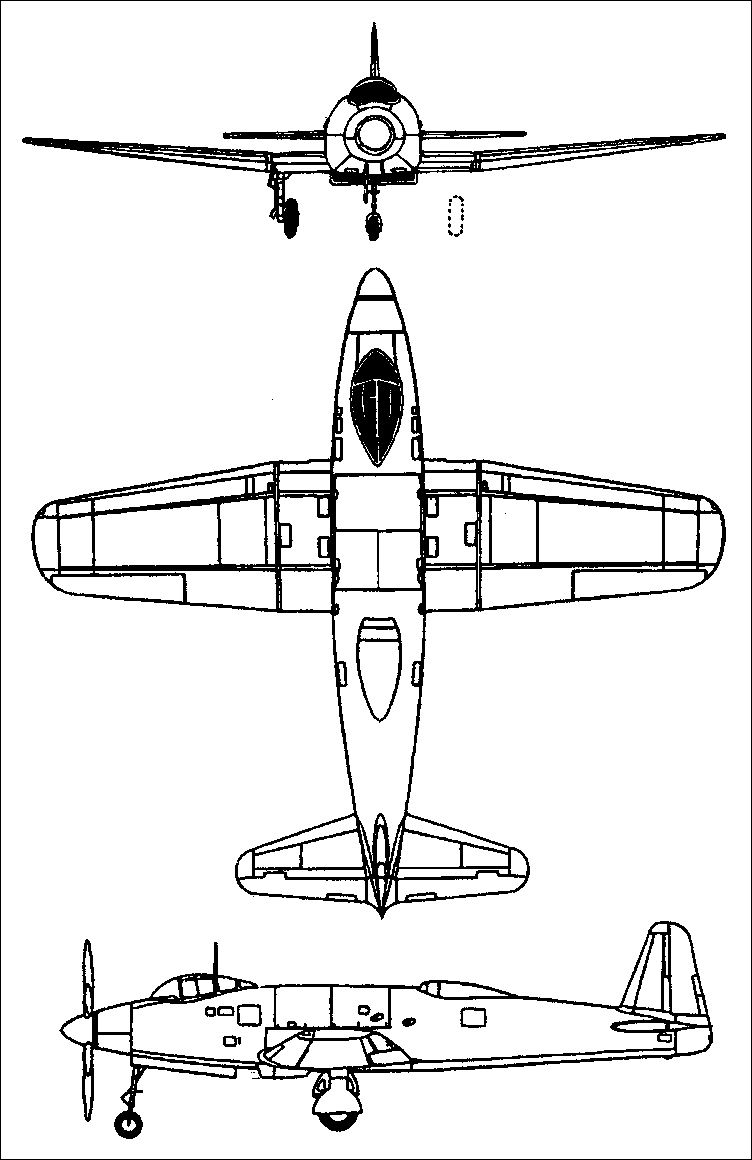

|A three-view drawing (752 x 1160)|
|Barry, 07.06.2016 14:59|
First flying on 8th May 1945, the first of two such aircraft was destroyed a few days later by an American air raid, whereupon all production was cancelled. There was talk of powering the second aircraft with Mitsubishi Ne-330 turbo jets but nothing came of it.
The power plant was as noted was in fact two coupled Aichi Atsuta developing 1,700 h.p. each
|Trevor Webb, e-mail, 09.02.2012 04:14|
According to some sources the Me509 was built and shipped to Japan. The R2Y1 is an enlarged development of this. The Me509 was a development of the Me 309 with the engine and cockpit transposed. The was a second incomplete protype at the end of the war with two jet engines in mid fuslage and of course no prp which was designated R2Y2.
|bombardier, e-mail, 30.11.2011 21:53|
This aircraft is a modified version of the unbuilt Me-509 that had tricycle landing gear and mid mounted engine.
|goutou, 21.06.2011 05:10|
I Think it was a med /eng German design, wish Revell,would this kit!
|y.k, 05.03.2011 19:12|
It's a mid ship twin engine plane same as Heinkel He119
|Klaatu83, e-mail, 04.03.2011 21:51|
A Japanese Airacobra?
|Mykola, 18.10.2010 15:10|
An amazing plane!
|Tyler, e-mail, 13.06.2010 19:28|
how much is the kit?
|Dave, e-mail, 15.03.2010 00:54|
Finemolds, makes a 1 /72nd scale kit,hard to find in the states!$$$,would be a cool build.I Think it was a med /eng German design, wish Revell,would this kit!
