L.W.S. 6 Zubr

1936

Back to the Virtual Aircraft Museum
  BOMBERVirtual Aircraft Museum / Poland / L.W.S.

L.W.S. 6 Zubr

Built as a low-risk back-up to the advanced PZL P.37 Los, the LWS Zubr (Bison) bomber had its origin in a design for an airliner that the Polish national airline had rejected as too old-fashioned. Unlike the all-metal Los, the Zubr was built of all sorts of materials. As production began, engines were changed from 336kW (450hp) Twin Wasps to 507kW (680hp) Bristol Pegasuses, which caused different stresses on the airframe. Many weaknesses soon became apparent and cracks were dealt with by fixing on wooden patches. Inevitably the prototype fell apart, unfortunately while carrying prospective Romanian purchasers. The 'improved' LWS.6 with the same engines and a twin tail weighed more because of its extra strengthening - so much more that they were unable to carry bombs. The Luftwaffe put the survivors into use as unarmed trainers.

FACTS AND FIGURES

© The prototype LWS.6 had a stronger twin-finned tail, but it was heavier than the original single-finned unit, which was refitted to the production models.

© The mixed construction of the Zubr included partly metal stressed skin, steel tube with fabri covering, fabric-covered metal, and just wood.

© The undercarriage retraction motors were not powerful enough to raise the landing gear and the gear units were eventually locked in the down position.

© The pilot's canopy was mounted above the flat-topped fuselage and offset to the left side. There was a dorsal gun turret as well as a twin turret above the bombaimer's glazed nose.

3-View

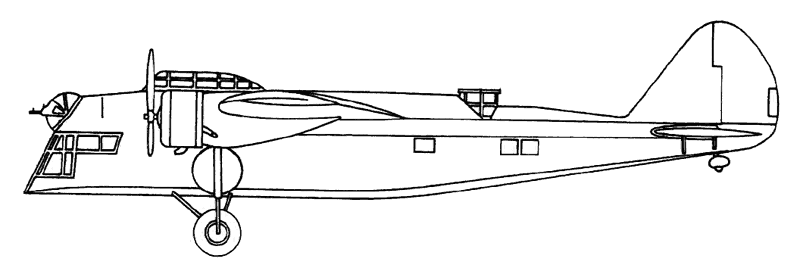

L.W.S. 6 ZubrA three-view drawing (800 x 271)

Specification
 CREW4
 ENGINE2 x 680hp Bristol Pegasus VIII piston engines
 WEIGHTS
  Take-off weight6865 kg15135 lb
 DIMENSIONS
  Wingspan18.52 m61 ft 9 in
  Length15.39 m51 ft 6 in
  Height4.00 m13 ft 1 in
 PERFORMANCE
  Max. speed380 km/h236 mph
