P.W.S. 10

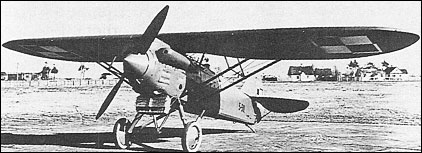

Designed by Aleksander Grzedzielski and Augustyn Bobek-Zdaniewski, the P.W.S.10 single-seat parasol monoplane fighter was the recipient of an order for two prototypes in 1929, the first of these flying in May 1930. Powered by a Skoda-built Lorraine-Dietrich LD 12Eb engine of 450hp, the P.W.S.10 was of mixed construction with a wooden wing and steel tube fuselage. Armament consisted of two 7.7mm Vickers guns. A contract was placed for 80 aircraft with deliveries commencing in the second half of 1931. Rather difficult to fly and never popular with its pilots, the P.W.S.10 was progressively withdrawn from 1933, but 20 reconditioned examples were sold to the Spanish Nationalist forces in 1936. Because of their inadequate performance they were restricted to the training role.

3-View

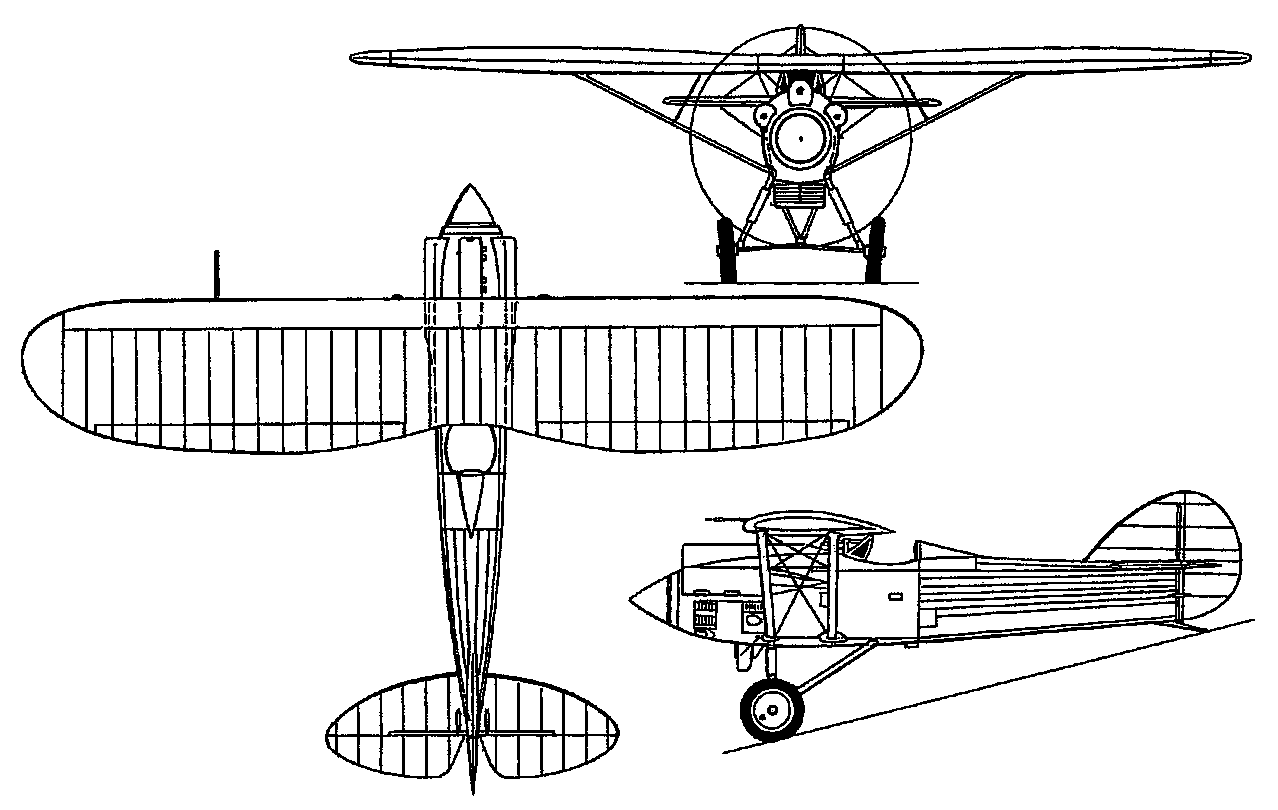

P.W.S. 10A three-view drawing (1278 x 810)


Specification
 WEIGHTS
    Take-off weight1500 kg3307 lb
    Empty weight1115 kg2458 lb
 DIMENSIONS
    Wingspan11.00 m36 ft 1 in
    Length7.50 m25 ft 7 in
    Wing area18.00 m2193.75 sq ft
 PERFORMANCE
    Max. speed258 km/h160 mph
    Range300 km186 miles
