PZL P.38 Wilk
1938
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Poland / PZL

P.38/I

Conceived as a multi-role fighter and designed by a team led by Franciszek Misztal, the Wilk (Wolf) was intended primarily as an attack fighter with secondary escort and intercept tasks. Of all-metal construction, the Wilk was projected with the indigenous P.Z.L.Foka (Seal) eight-cylinder inverted-Vee air-cooled engine, the proposed armament consisting of two 20mm Wz 38 cannon and twin 7.92mm Wz 36 machine guns in the nose, and twin 7.92mm guns on a flexible mounting for the second crew member. Difficulties in development of the Foka engine led to the second prototype, the P.38/II, being fitted with two 450hp Ranger SGV-770B 12-cylinder engines. This aircraft flew in May 1938, the first prototype with 620hp Foka II engines not flying until January 1939. In the meantime, a more refined development of the basic design, the P.48 Lampart (Leopard) powered by 700hp Gnome-Rhone 14M Mars radials, had succeeded the Wilk in future planning, but prototypes had yet to be completed at the time of the German invasion of Poland.

3-View

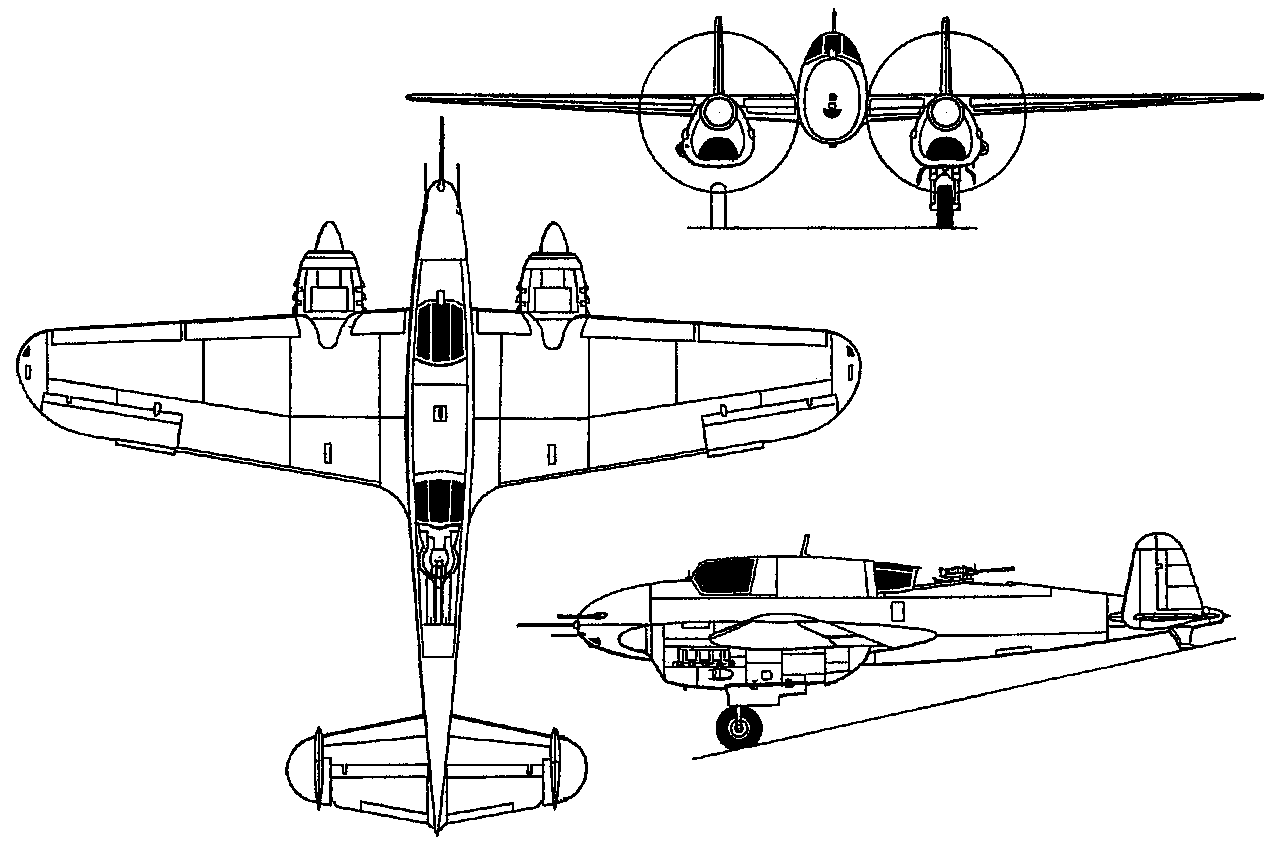

P.38/IA three-view drawing of P.38/I (1280 x 844)


Specification
 MODELFoka II-powered prototype
 WEIGHTS
    Take-off weight2770 kg6107 lb
    Empty weight1715 kg3781 lb
 DIMENSIONS
    Wingspan11.05 m36 ft 3 in
    Length8.35 m27 ft 5 in
    Height2.50 m8 ft 2 in
    Wing area19.00 m2204.51 sq ft
 PERFORMANCE
    Max. speed465 km/h289 mph
    Range1250 km777 miles

Comments
Artur, keleborn=op.pl, 15.11.2007

dzieki:-)

Krzysztof Kolczynski, krzyszk=hotmail.com, 28.02.2007

Hello,
Your description of PZL-38 Wilk contains a couple of errors:
1. It was intended as a multirole aircraft: reconnaissance, light bomber, dive bomber (with a single 300 kg bomb under the fuselage), and interceptor.
2. It was supposed to have only ONE 20 mm cannon (machine gun numbers are correct).
3. It was the FIRST prototype, PZL-38/I, that was fitted with stopgap Ranger engines rated at 500 hp at 3000 m. Their actual power output was reportedly only 330 hp.
4. It was first flown in APRIL 1938.
5. The second prototype, PZL-38/II, was fitted with Foka, not Foka II engines. The planned maximum power was 420-450 hp. The actual power output is not precisely known, but believed not to exceed some 360 hp.
6. The "Foka II" (AKA "Foka B"), was a new 12-cylinder design, aimed at 700+ hp, utilizing only some components of the unsuccessful 8-cylinder Foka. It never reached a prototype stage, and it is unconnected with PZL-38.
7. For PZL-38/II, take-off weight was 2800 kg, empty weight 2156 kg, wing area 20.4 m2. During very limited flight testing, it achieved only slightly over 400 km/h at low level.
Regards,
Krzysztof
