I.A.R. 813

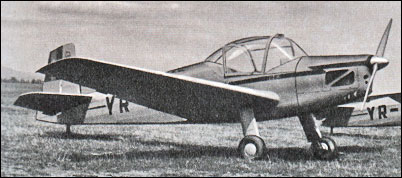

The IAR 813 is a two-seater light sports and training aircraft developed from the earlier IAR 811. The IAR 813 is a low-wing cantilever monoplane of wooden and composite construction powered by a Walter Minor 6-III six-cylinder in-line inverted air-cooled engine providing a top speed of 185km/h and a range of 500km.

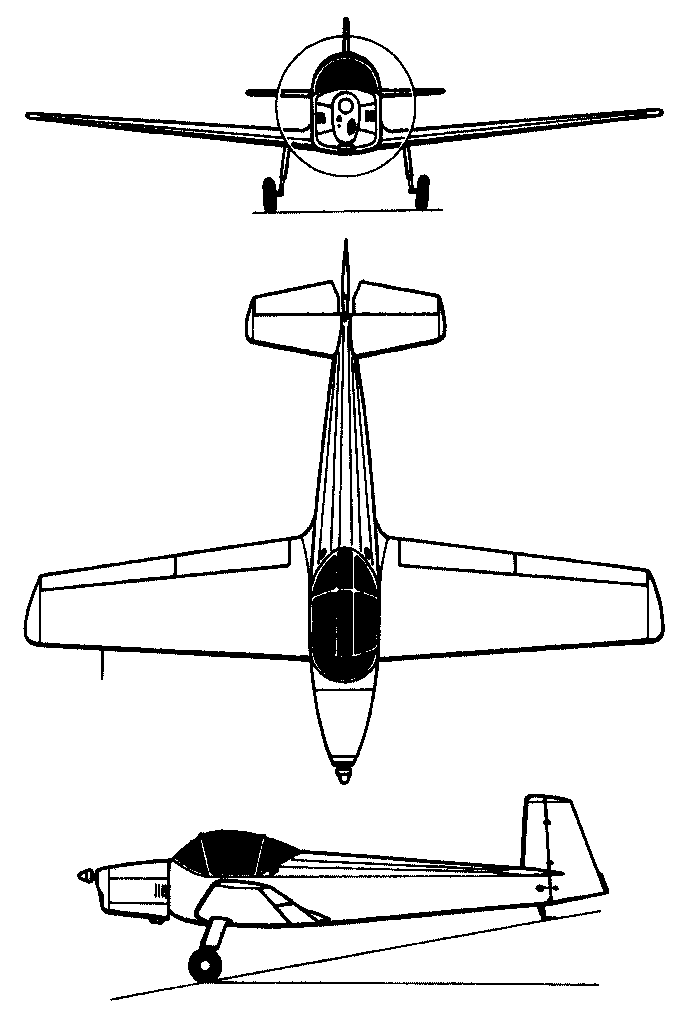

3-View
I.A.R. 813A three-view drawing (686 x 1022)


Specification
 ENGINE1 x Walter Minor 4-III, 77kW
 WEIGHTS
    Take-off weight760 kg1676 lb
    Empty weight520 kg1146 lb
 DIMENSIONS
    Wingspan10.1 m33 ft 2 in
    Length8.4 m28 ft 7 in
    Height2.3 m8 ft 7 in
 PERFORMANCE
    Max. speed190 km/h118 mph
    Cruise speed175 km/h109 mph
    Ceiling5500 m18050 ft
