I.A.R. 822
1970
Back to the Virtual Aircraft Museum
  UTILITY AIRCRAFTVirtual Aircraft Museum / Romania / I.A.R.

I.A.R. 822

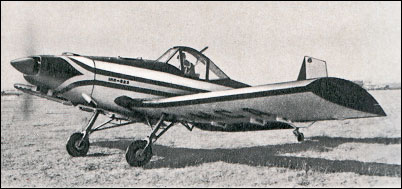

The first I.A.R. 822 flew in 1970. Series production started in 1971.

3-View

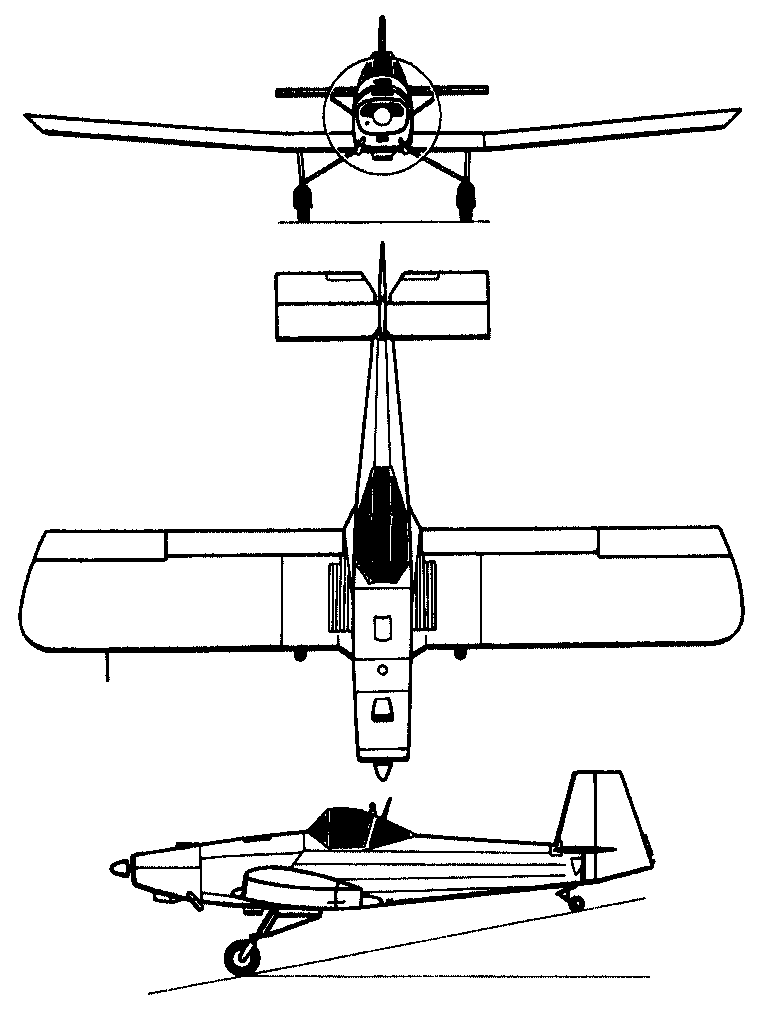

I.A.R. 822A three-view drawing (764 x 1018)


Specification
 ENGINE1 x Lycoming IO-540-G1D5, 215kW
 WEIGHTS
    Take-off weight1900 kg4189 lb
    Loaded weight1060 kg2337 lb
 DIMENSIONS
    Wingspan12.8 m42 ft 0 in
    Length9.4 m31 ft 10 in
    Height2.8 m9 ft 2 in
    Wing area26.0 m2279.86 sq ft
 PERFORMANCE
    Max. speed195 km/h121 mph
    Cruise speed170 km/h106 mph
    Ceiling4500 m14750 ft
    Range w/max.fuel500 km311 miles
