I.A.R. 823
1973
Back to the Virtual Aircraft Museum
  MULTI-PURPOSE AIRCRAFTVirtual Aircraft Museum / Romania / I.A.R.

I.A.R. 823

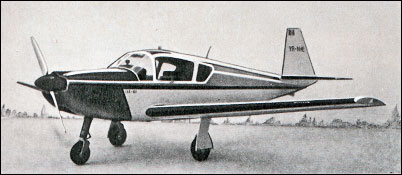

The first I.A.R. 823 flew in 1973. Series production started in 1974 in Brashov.

3-View
I.A.R. 823A three-view drawing (702 x 1012)


Specification
 ENGINE1 x Lycoming IO-540-G1D5, 215kW
 WEIGHTS
    Take-off weight1500 kg3307 lb
    Loaded weight880 kg1940 lb
 DIMENSIONS
    Wingspan10.0 m33 ft 10 in
    Length8.2 m27 ft 11 in
    Height2.5 m8 ft 2 in
    Wing area15.0 m2161.46 sq ft
 PERFORMANCE
    Max. speed300 km/h186 mph
    Cruise speed280 km/h174 mph
    Ceiling5800 m19050 ft
    Range w/max.fuel1350 km839 miles
    Range w/max.payload700 km435 miles

Comments
Gabriel C. E., 01.06.2011

I have flown this kind of aircraft in Bobocu Military School-Buzau, in the first year (propeller engine, first step of trainig for military pilots) and it was a wonderful airplane what develope basic skills for pilots before to start in the second year on jet-engine. You could learn basic navigation very easy on this tipe of plane.

Phil S., 28.11.2010

I have made two flight in this aircraft. The one I flew was configured s a primary military trainer, fully aerobatic with only two individuals, dual controls both flight and power. Aircraft can carry four individuals in standard catagory. Lots of fun to fly.
