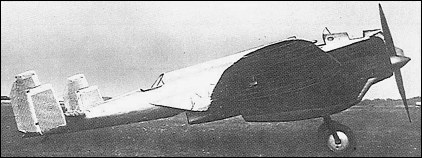

Tupolev ANT-21 (MI-3)

Designed at the KOSOS (Konstruktorski otdel opytnovo samolyetostroeniya, or Design Department for Experimental Aircraft Construction) within TsAGI by a brigade headed by Aleksandr A Arkhangel'sky, the ANT-21 MI (mnogomestnyi istrebitel - multi-seat fighter) was, by international standards of its day, very much state-of-the-art. Featuring all-metal stressed-skin semi-monocoque construction with partial flush-riveting and a retractable main undercarriage, the ANT-21, which was assigned the service designation MI-3, was powered by two M-17B (BMW VI) 12-cylinder water-cooled engines of 680hp. Proposed armament consisted of one 12.7mm machine gun or 20mm cannon on a pivoted nose mounting, two 7.62mm guns firing from a dorsal position and a single 7.62mm gun firing from a ventral tunnel. Three crew members were carried.

Work on the ANT-21 began on 18 January 1932, first flight taking place in August 1933. On 14 September, the starboard rudder suffered damage and separated as a result of violent flutter in a shallow dive. Arkhangel'sky elected to undertake major redesign as the ANT-21bis.

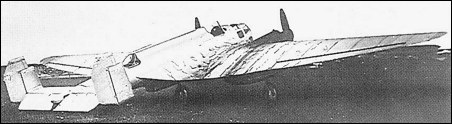

Tupolev ANT-21 (MI-3)

Specification
 WEIGHTS
  Take-off weight5500 kg12125 lb
  Empty weight3670 kg8091 lb
 DIMENSIONS
  Wingspan20.76 m68 ft 1 in
  Length11.70 m38 ft 5 in
  Wing area55.10 m2593.09 sq ft
 PERFORMANCE
  Max. speed359 km/h223 mph
  Range1120 km696 miles

3-View

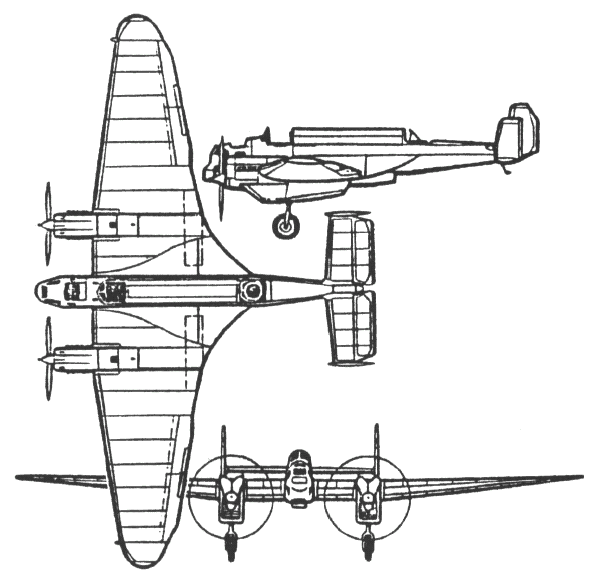

Tupolev ANT-21 (MI-3)A three-view drawing (600 x 584)
