Tupolev ANT-22 / MK-1
1934
Back to the Virtual Aircraft Museum
  FLYING BOATVirtual Aircraft Museum / USSR / Russia / Tupolev

Tupolev ANT-22 / MK-1

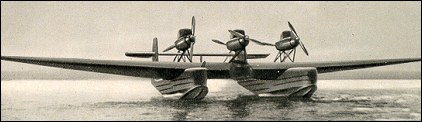

The Tupolev ANT-22 or MK-1 with six 619kW M-34R engines was a long-range bomber reconnaissance flying-boat, its twin-hull design clearly inspired by the Italian Savoia-Marchetti S.55. Test flown for the first time on 8 August 1934, it established several weight-to-height world records in December 1936, but was abandoned soon afterwards. Armament comprised eight 7.7mm ShKAS machine-guns, one 20mm cannon and a bombload of up to 6000kg. The MK-1 spanned 51.00m and had a maximum speed of 223km/h.

3-View
Tupolev ANT-22 / MK-1A three-view drawing (660 x 654)


Specification
 MODELANT-22
 CREW3
 ENGINE6 x AM-34R,
 WEIGHTS
    Take-off weight33560 kg73988 lb
 DIMENSIONS
    Wingspan51.0 m167 ft 4 in
    Length24.1 m79 ft 1 in
    Height6.4 m21 ft 0 in
 PERFORMANCE
    Max. speed230 km/h143 mph
    Ceiling3500 m11500 ft
 ARMAMENT2 x 20mm cannons, 6 x 12.7mm machine-guns, 6000kg of bombs

Comments
Barry, 04.10.2012

Some bomb load for 1934 6000kg or 13,200lb, I don't think so!

malu, 20.06.2011

ShKAS machine-guns, one 20mm cannon and a bombload of up to 6000kg. The MK-1 spanned 51.00m and had a maximum speed of 223km/h.

, 20.06.2011

Tupolev ANT-22 / MK-1
1934

jarecki, 02.04.2008

Propably, the main task of this huge flying boats was carrying of midget submarines hereabouts enemies harbours.
