Tupolev ANT-35 / PS-35

The Tupolev ANT-35 all-metal light passenger transport prototype was based on the SB-2 bomber, and was flown initially on 20 August 1936. Of low-wing configuration with retractable main landing gear units, it was powered by two 597kW Gnome-Rhone 14K radials, later replaced by Soviet M-85s; its near circular-section fuselage accommodated a crew of two or three and 10 passengers. The improved ANT-35bis prototype was followed by nine series aircraft powered by 746kW M-62IR engines, and the type entered service with Aeroflot as the PS-35, delivered from 1937 to 1939. After June 1941 several were used for liaison and VIP transport, this 20.80m span aircraft having a maximum speed of 372km/h and a range of 1640km.

3-View

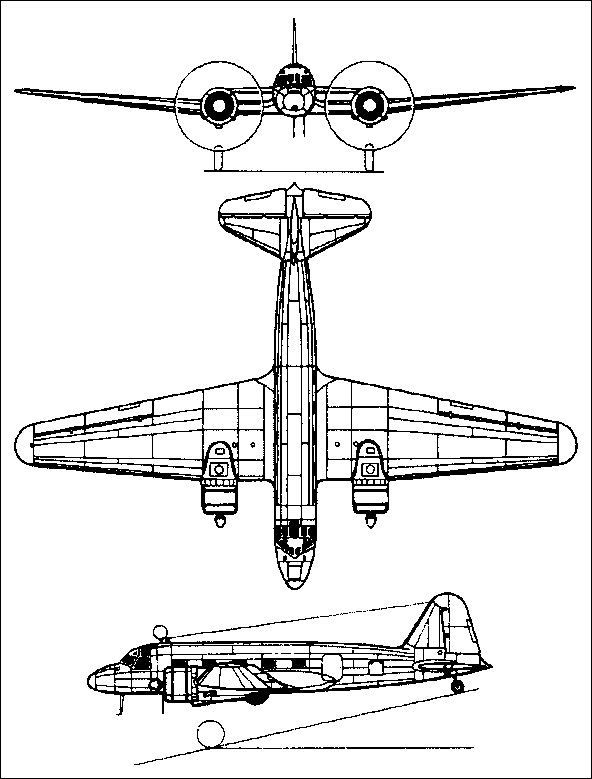

Tupolev ANT-35 / PS-35A three-view drawing (592 x 779)


Specification
 MODELPS-35
 CREW2
 PASSENGERS10
 ENGINE2 x M-85,
 WEIGHTS
    Take-off weight6620 kg14595 lb
 DIMENSIONS
    Wingspan20.8 m68 ft 3 in
    Length15.0 m49 ft 3 in
    Height5.9 m19 ft 4 in
    Wing area58.0 m2624.31 sq ft
 PERFORMANCE
    Max. speed376 km/h234 mph
    Cruise speed350 km/h217 mph
    Ceiling7200 m23600 ft
    Range1600 km994 miles

Comments
gangya, 20.06.2011

On other pages there are pictures pictures of the PS-35 showing the aircraft you're describing here.

, 20.06.2011

Tupolev ANT-35 / PS-35

Jan-Erik Forsling, 23.11.2008

Now I'm confused. Here and on other sites the ANT-35 is equated with the PS-35. I have a Swedish Aviation Journal from 1946, "Red Wings", showing the ANT-35 as an aircraft very closely resembling a DC-3 with the comment that it only seated 10 passengers But that it had an impressive cruising speed of nearly 400 km/hr. On other pages there are pictures pictures of the PS-35 showing the aircraft you're describing here.

Regards,

Jan-Erik
