Tupolev ANT-9 / PS-9
1929
Back to the Virtual Aircraft Museum
  PASSENGERVirtual Aircraft Museum / USSR / Russia / Tupolev

Tupolev ANT-9 / PS-9

The prototype of the Tupolev ANT-9 high-wing monoplane transport made its first flight in May 1929. Of all-metal construction with corrugated alloy skinning, it had enclosed accommodation for two pilots and nine passengers. Its three 172kW Gnome-Rhone Titan radials were replaced in series machines by domestic M-26s, which proved to be underpowered and were in turn replaced by imported Wright Whirlwinds of 224kW each. After the first batch of some 12 aircraft the design was revised to twin-engined configuration, with two 507kW M-17 engines raising maximum speed from 205km/h to 215km/h; this version was known usually as the PS-9, and about 70 were built. The ANT-9 prototype, registered URSS-309, made a tour of European cities in the summer of 1929, and the three-engined ANT-9s served with the Soviet-German airline Deruluft on the Moscow-Berlin service. Some were also operated by the VVS as troop or VIP transports. The PS-9 was flown widely on passenger services, the most famous being the propaganda aircraft Krokodil, with a suitably decorated plywood nose complete with a set of sharp teeth.

3-View

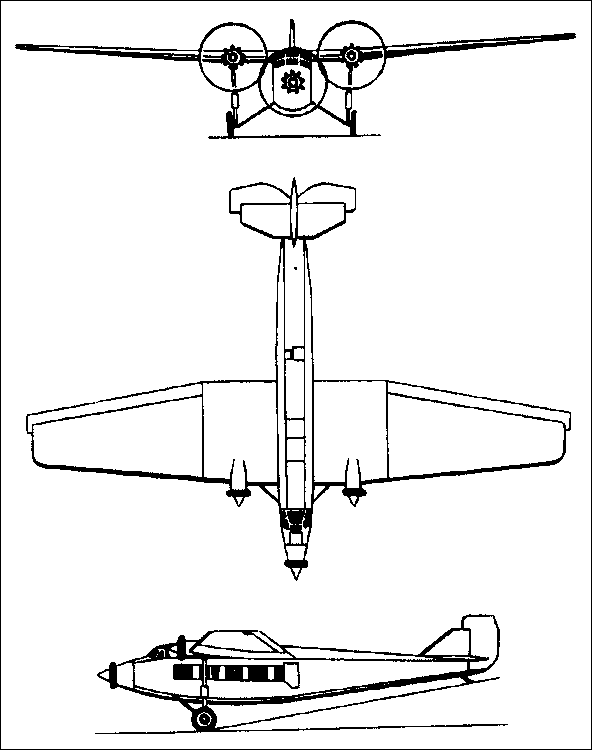

Tupolev ANT-9 / PS-9A three-view drawing (592 x 750)


Specification
 MODELPS-9
 CREW2
 PASSENGERS9
 ENGINE3 x Gnome-Rhone "Titan"
 WEIGHTS
    Take-off weight6200 kg13669 lb
    Empty weight3353 kg7392 lb
 DIMENSIONS
    Wingspan23.7 m78 ft 9 in
    Length16.8 m55 ft 1 in
    Wing area84.0 m2904.17 sq ft
 PERFORMANCE
    Max. speed210 km/h130 mph
    Cruise speed195 km/h121 mph
    Ceiling3750 m12300 ft
    Range1800 km1118 miles
    Range w/max.payload1000 km621 miles

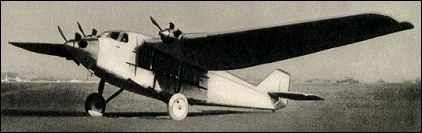

The propaganda aircraft Krokodil
