Beriev MDR-5
1938
Back to the Virtual Aircraft Museum
  FLYING BOATVirtual Aircraft Museum / USSR / Russia / Beriev

Beriev MDR-5

The first prototype flew as an amphibian in May 1938. The second prototype was built as a flying boat. Only two were built.

Beriev MDR-5


Specification
 ENGINE2 x M-87A, 950hp
 WEIGHTS
    Take-off weight8795 kg19390 lb
    Empty weight6083 kg13411 lb
 DIMENSIONS
    Wingspan25.0 m82 ft 0 in
    Length15.9 m52 ft 2 in
    Wing area78.5 m2844.97 sq ft
 PERFORMANCE
    Max. speed350 km/h217 mph
    Ceiling8700 m28550 ft
    Range1150-2415 km715 - 1501 miles

3-View

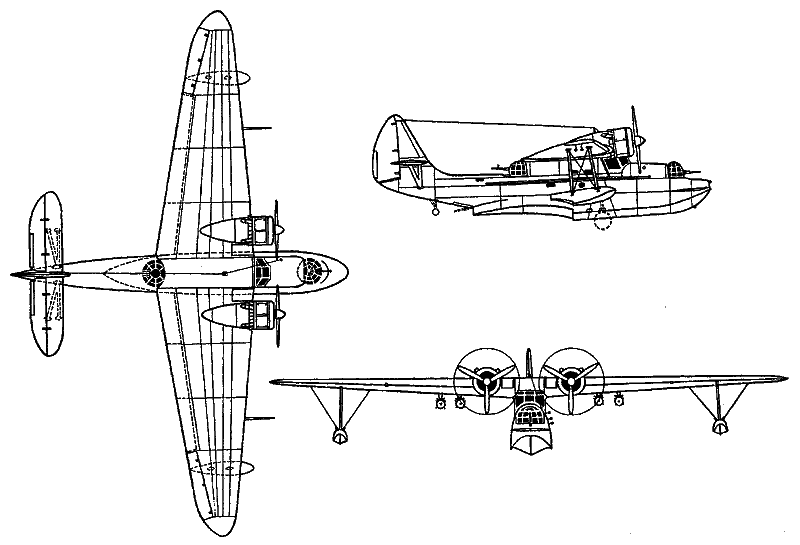

Beriev MDR-5A three-view drawing (800 x 545)
