Ilyushin IL-18
1958
Back to the Virtual Aircraft Museum
  PASSENGERVirtual Aircraft Museum / USSR / Russia / Ilyushin

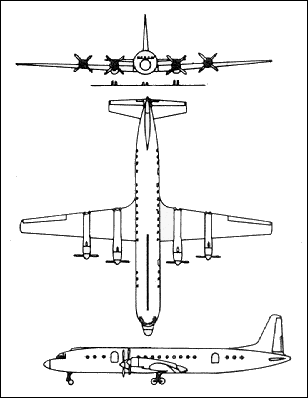

Ilyushin IL-18

The llyushin Il-18 was developed in the mid-1950s to meet an Aeroflot requirement for a medium-range 75/100-seat transport, and the first prototype flew on 4 July 1957. Aeroflot inaugurated use of the type on its Moscow-Adler and Moscow-Alma-Ata routes on 20 April 1959, and eventually something more than 700 of these aircraft were built. Of the total built only small numbers entered military service, primarily for VIP transport.

As Il-18s have been retired from civil use some have been converted into the ECM or electronic intelligence (Elmt) ll-20s, and these have the NATO reporting name 'Coot-A'. It seems likely that the numbers of these aircraft will increase as the turboprop-powered ll-18s are retired from Aeroflot use when replaced by turbofan-powered airliners. In addition to the 'Coot-A' there is another military version, the maritime reconnaissance/ASW Il-38 'May' developed from the Il-18 airliner. This differs from the standard Il-18 by having a lengthened fuselage, MAD (magnetic anomaly detection) tail 'sting', weapon-carrying capability, and the wing located much further forward on the fuselage to offset the change in centre of gravity resulting from the introduction of more equipment and stores. About 60 are believed to be in use by the Soviet naval air force and one squadron in India

Ilyushin IL-18


Specification
 CREW5
 PASSENGERS89-110
 ENGINE4 x turbo-prop AI-20, 2940kW
 WEIGHTS
    Take-off weight61200 kg134924 lb
    Empty weight34500 kg76060 lb
 DIMENSIONS
    Wingspan37.4 m122 ft 8 in
    Length35.9 m117 ft 9 in
    Height10.2 m33 ft 6 in
    Wing area140.0 m21506.95 sq ft
 PERFORMANCE
    Max. speed685 km/h426 mph
    Cruise speed650 km/h404 mph
    Range5000 km3107 miles
    Range w/max.fuel6500 km4039 miles
    Range w/max.payload3700 km2299 miles


wolf, lupasoiul(@)yahoo.com, 19.10.2007
at the romanian company TAROM the called it "the mule" regarding to his excelent ruggednes and good flight propertyes. One of the IL 18 of TAROM made a safe bellilanding on an beach in Creta after all 4 engines stopped due to iceing in the fuel.
