Ilyushin IL-20

This armored ground attack aircraft was presented at State Trials in 1948, as a heavier 'supplement' type to the IL-10 (already in service) and IL-10M (ready for production). IL-20 differed from any other aircraft built before by its pilot's cockpit, located above the engine at extreme nose and provided unrestricted forward view. Engine and pilot's cockpit had common armour 'shell'. Landing gear (including the tail wheel) - retractable.

Four vertically movable 23mm NS-23 cannons were installed in the wing out of propeller arc. IL-20 could carry 1190kg of bombs on external hardpoints (up to 500kg each) and unguided RS family rockets.

Gunner-operator occupied separate cockpit. He operated a remotely-controlled turret with single NS-23 cannon. Defensive weapons included DAG-10 dispenser for 10 aircraft grenades AG-2.

Flight tests proved good performance of the aircraft (similar to those of lighter IL-10M, thanks to more powerful engine). But age of piston engine aircraft was fading, and IL-20 was not accepted for series production.

3-View

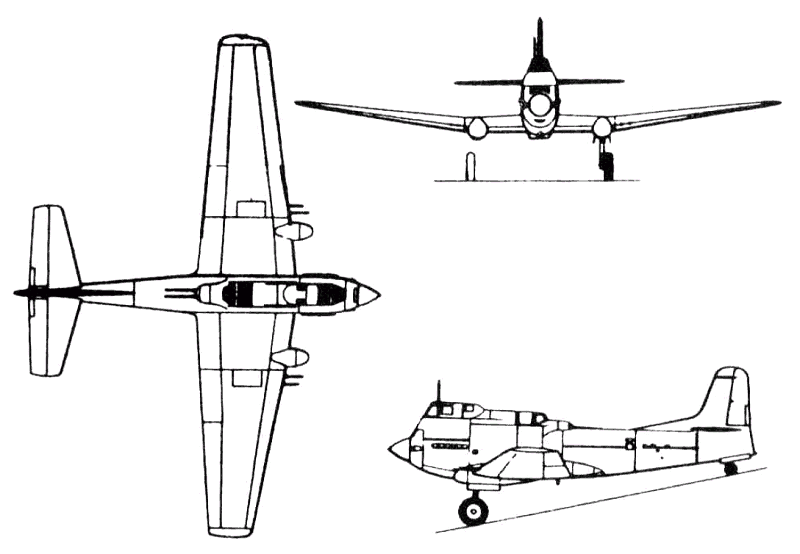

Ilyushin IL-20A three-view drawing (800 x 554)

Specification
 ENGINE1 x AM-47F, 2700kW
 WEIGHTS
  Take-off weight9820 kg21650 lb
  Empty weight7500 kg16535 lb
 DIMENSIONS
  Wingspan17.0 m56 ft 9 in
  Length12.59 m41 ft 4 in
  Wing area44.0 m2473.61 sq ft
 PERFORMANCE
  Max. speed515 km/h320 mph
  Ceiling7750 m25450 ft
  Range1180 km733 miles
 ARMAMENT3-5 x 23mm cannon, 1190kg of bombs
