Lavochkin/Gorbunov/Gudkov LaGG-3

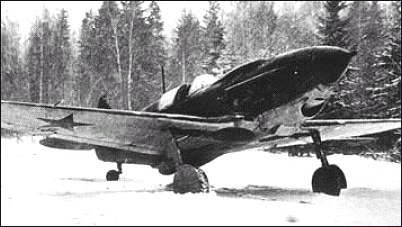

The LaGG-3 was essentially the series production version of the LaGG-1 with a revised outer wing incorporating fuel tanks, and an armament of one 20mm and two 7.62mm weapons. Fixed wing slats - later replaced by automatic slats - were introduced and balance weights were added on the elevators and rudder, but were later discarded in favour of statically and dynamically balanced surfaces. Weight was reduced as a result of a structural analysis. LaGG-3 deliveries commenced in the spring of 1941, initially with the M-105P engine, but, from late in the year, with the M-105PF affording 1260hp at 800m. Provision was later made to replace one or both machine guns by weapons of 12.7mm calibre, the 20mm hub-mounted cannon being replaced by one of 23mm calibre in some cases, and a pair of 12.7mm underwing guns was sometimes fitted. Three aircraft were each fitted with a 37mm cannon and referred to as LaGG-3K-37s, and one example was fitted with the 1650hp Klimov M-107A engine. Production of the LaGG-3 was completed in the late summer of 1942 with a total of 6,528 built.

Lavochkin/Gorbunov/Gudkov LaGG-3

Specification
 WEIGHTS
  Take-off weight3190 kg7033 lb
  Empty weight2620 kg5776 lb
 DIMENSIONS
  Wingspan9.8 m32 ft 2 in
  Length8.9 m29 ft 2 in
  Wing area17.5 m2188.37 sq ft
 PERFORMANCE
  Max. speed570 km/h354 mph
  Cruise speed450 km/h280 mph
  Ceiling9700 m31800 ft
  Range800 km497 miles

3-View
Lavochkin/Gorbunov/Gudkov LaGG-3A three-view drawing (1670 x 1230)

Lavochkin/Gorbunov/Gudkov LaGG-3
