Nikitin-Shevchenko IS-1

1940

Back to the Virtual Aircraft Museum
  EXPERIMENTAL FIGHTERVirtual Aircraft Museum / USSR / Russia / Nikitin-Shevchenko

Nikitin-Shevchenko IS-1

Perhaps the most innovatory single-seat fighter to undergo flight testing in the late 'thirties was the IS-1. Polymorphic in concept in that it could translate from biplane to monoplane configuration and back again in the air, the IS-1 (Istrebitel Skladnoi or folding fighter) was conceived by Vladimir V Shevchenko and designed in collaboration with Vasili V Nikitin. The IS-1 was intended to take-off as an unequal-span biplane, subsequently retracting its main wheels pneumatically into the lower wing and then folding this wing (again pneumatically), the centre section into recesses in the fuselage sides and the outer panels into shallow depressions in the upper wing. Theoretically, the lower wing could be extended during combat to increase manoeuvrability. The IS-1 was powered by a 1,100hp Shvetsov M-63 nine-cylinder radial and carried an armament of four 7.62mm ShKAS machine guns. Construction was all metal and the prototype was flown for the first time on 6 November 1940, the lower wing being successfully retracted and extended within 7-10 seconds during subsequent trials. Refinement of the basic design for series production had meanwhile re- suited in the IS-2, only one prototype of the IS-1 being completed.

3-View

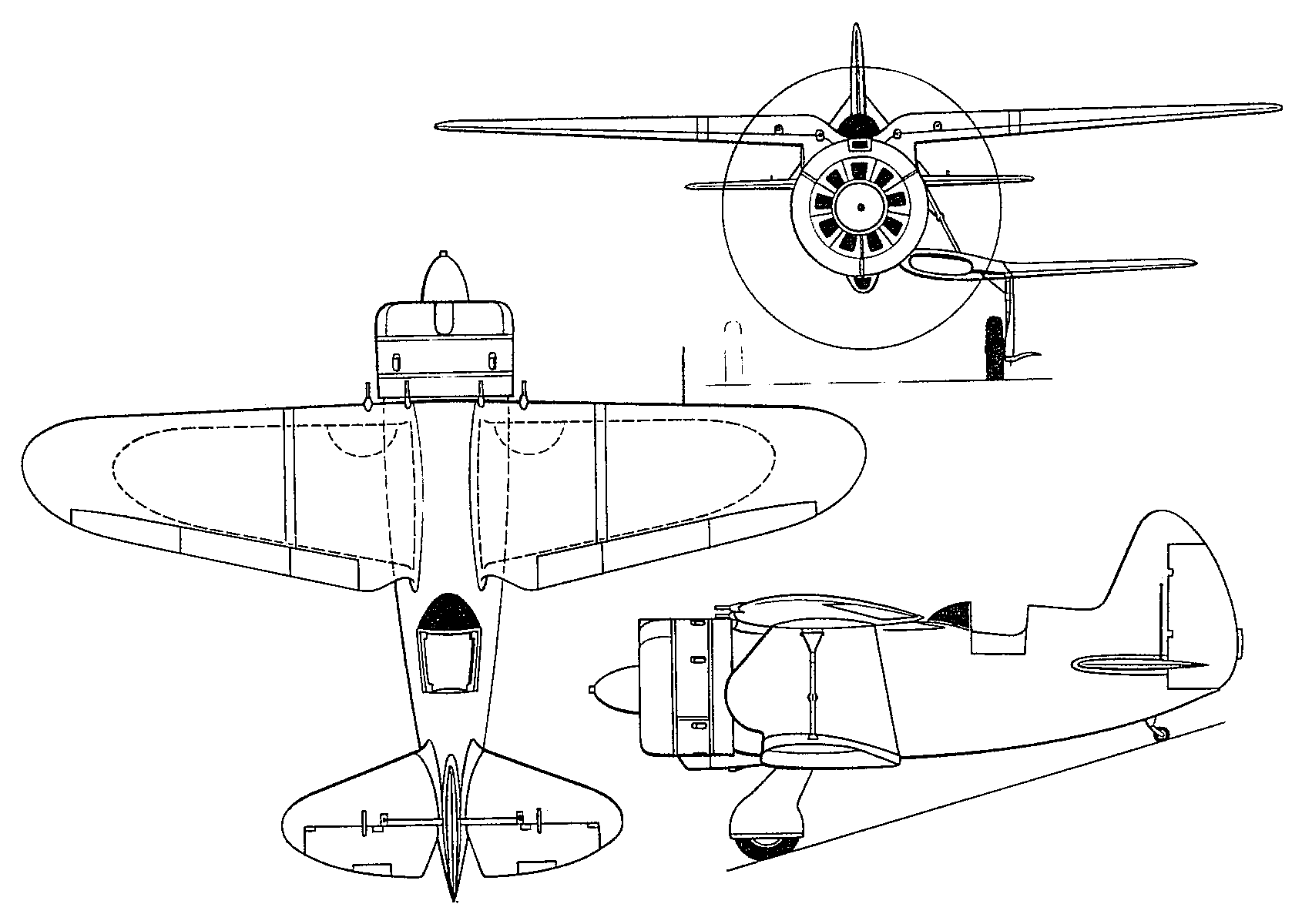

Nikitin-Shevchenko IS-1A three-view drawing (1690 x 1200)

Specification
 WEIGHTS
  Take-off weight2300 kg5071 lb
  Empty weight1400 kg3086 lb
 DIMENSIONS
  Wingspan8.60 m28 ft 3 in
  Length6.79 m22 ft 3 in
  Wing area13.0-20.8 m2139.93 - 223.89 sq ft
 PERFORMANCE
  Max. speed453 km/h281 mph
  Range600 km373 miles
