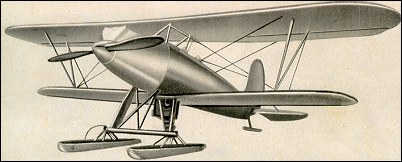

Polikarpov I-3

Trouble with the I-1 monoplane led Polikarpov to design a new fighter as a biplane, and in 1927 the I-3 appeared. Powered by a 447kW M-17 engine, it entered production and service, later being supplemented but not replaced on production lines by the superior I-5. Several hundred I-3s were built.

3-View

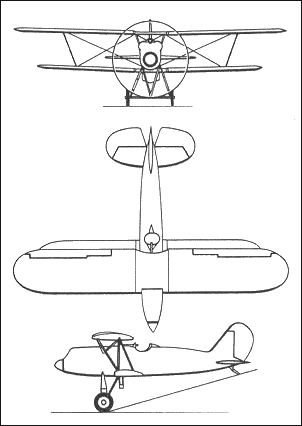

Polikarpov I-3A three-view drawing (1694 x 1200)


Specification
 CREW1
 ENGINE1 x BMW-VI, 370kW
 WEIGHTS
    Take-off weight1863 kg4107 lb
 DIMENSIONS
    Wingspan10.311.0/9.0 m34 ft 10 in / 30 ft 6 in
    Length8.1 m27 ft 7 in
    Height4.1 m13 ft 5 in
 PERFORMANCE
    Max. speed280 km/h174 mph
    Ceiling7200 m23600 ft
    Range w/max.fuel580 km360 miles
 ARMAMENT2 machine-guns
