Shavrov Sh-3

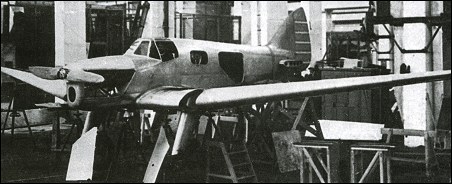

The Sh-3 was intended to be an executive transport. Work had started but in 1936 project was cancelled before any aircraft were completed.

3-View

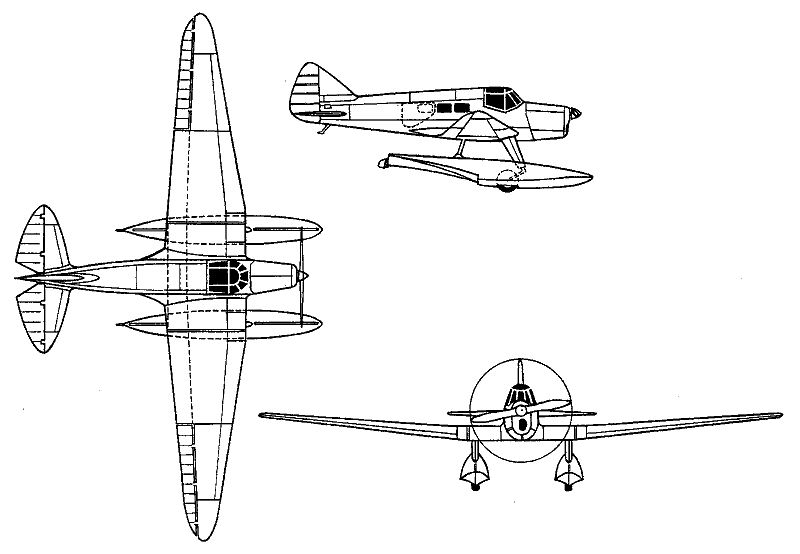

Shavrov Sh-3A three-view drawing (800 x 554)


Specification
 ENGINE1 x Cirrus Hermes, 120hp
 WEIGHTS
    Take-off weight1070 kg2359 lb
    Empty weight720 kg1587 lb
 DIMENSIONS
    Wingspan14.0 m45 ft 11 in
    Length7.8 m25 ft 7 in
    Wing area24.0 m2258.33 sq ft
