Shavrov Sh-7

The first prototype flew in 1940. Series production was recommended but cancelled with the beginning of the war in 1941.

3-View

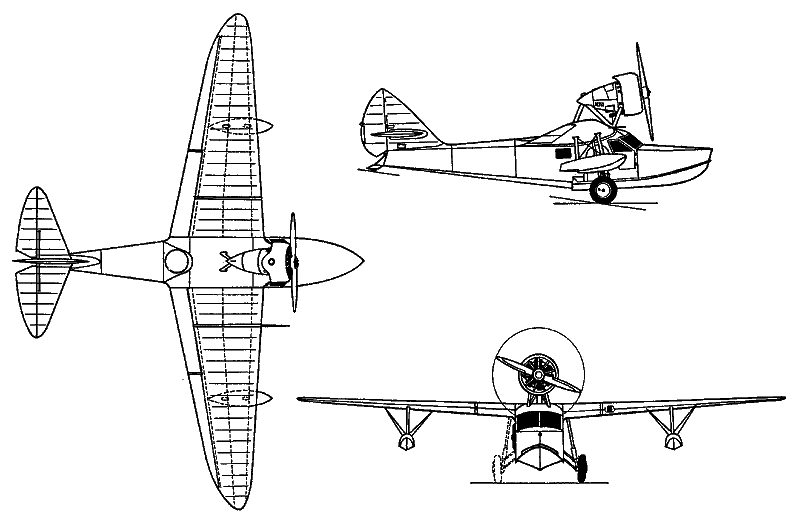

Shavrov Sh-7A three-view drawing (800 x 521)


Specification
 CREW2
 PASSENGERS4
 ENGINE1 x MG-31F, 330hp
 WEIGHTS
    Take-off weight1900 kg4189 lb
    Empty weight1230 kg2712 lb
 DIMENSIONS
    Wingspan13.0 m42 ft 8 in
    Length9.4 m30 ft 10 in
    Wing area23.3 m2250.80 sq ft
 PERFORMANCE
    Max. speed220 km/h137 mph
    Range920 km572 miles
