Tupolev Tu-70
1946
Back to the Virtual Aircraft Museum
  PASSENGERVirtual Aircraft Museum / USSR / Russia / Tupolev

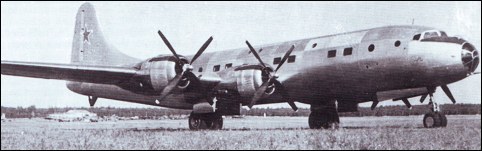

Tupolev Tu-70

One-off passenger transport developed in parallel with Tu-4; flown on 27 November 1946; new nose with conventional cockpit/flight deck instead of low-drag Superfortress-style nose - designed for crew of eight and 48 VIP passengers, but used with crew of six and 72 passengers as staff transport for air force.

3-View
Tupolev Tu-70A three-view drawing (1954 x 1594)


Specification
 CREW6
 PASSENGERS48
 ENGINE4 x ASh-73TK, 1770hp
 WEIGHTS
    Take-off weight51400 kg113318 lb
    Empty weight38290 kg84415 lb
 DIMENSIONS
    Wingspan43.05 m141 ft 3 in
    Length35.61 m117 ft 10 in
    Height9.75 m32 ft 0 in
    Wing area161.7 m21740.52 sq ft
 PERFORMANCE
    Max. speed560 km/h348 mph
    Range4900 km3045 miles

Tupolev Tu-70
