Yakovlev AIR-2

Development of the AIR-1 with radial engine. It was built in two versions with size and construction almost identical to the predecessor.

The first one was powered by M-23 engine. It had plexiglas canopy covering both cockpits and opening sidewards. But the aircraft was too slow to show advantage of a canopy. In addition engine vibration was above acceptable level.

Second version with 60hp Walter engine had performance slightly worser (due to engine drag) than the AIR-1. Four were built and used for training.

Ya-2S

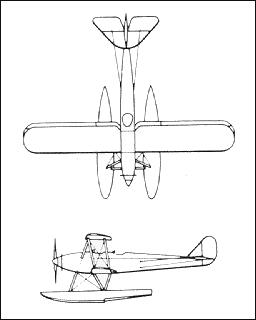

Version of the AIR-2 with more powerful 'Siemens' engine. Performance was improved substantially. It became possible to install AIR-2S on floats designed by V.B.Shavrov. Floatplane version was flown on May 18, 1931. Transition from wheels to floats took as little as 1hour 10minutes. Pilot B.L.Bukhgolts and passenger V.B.Shavrov performed short straight flight, and without stopping the engine another 10 minutes circle flight. Next crew to fly were Ju.I.Piontkovskij and A.S.Yakovlev.

Aircraft was flown many times on Moscow river (Moscow) without any problems.

Yakovlev AIR-2


Specification
 CREW2
 ENGINE1 x Siemens Sh13A, 62kW
 WEIGHTS
    Take-off weight710 kg1565 lb
    Empty weight470 kg1036 lb
 DIMENSIONS
    Wingspan8.9 m29 ft 2 in
    Length7.7 m25 ft 3 in
    Wing area18.7 m2201.28 sq ft
 PERFORMANCE
    Max. speed140 km/h87 mph
    Cruise speed120 km/h75 mph
    Ceiling3350 m11000 ft
    Range500 km311 miles
