Yakovlev Ya-3 Pionerskaja Pravda
1929
Back to the Virtual Aircraft Museum
  SPORT, TRAININGVirtual Aircraft Museum / USSR / Russia / Yakovlev

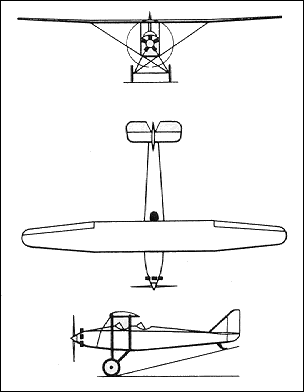

Yakovlev Ya-3 Pionerskaja Pravda

Development of the AIR-2 in parasol monoplane configuration. It used fuselage, powerplant, landing gear and tail identical to the predecessor. Money for construction were provided by Osoaviakhim.

Aircraft was ready on Summer 1929. On September 6 same year pilots Filin and Kovalkov (at the time students of the VVA, as well as a designer) flew nonstop from Mineralnye Vody to Moscow covering 1835km with average speed 166.8km/h, setting another International Record for Yakovlev's aircraft.

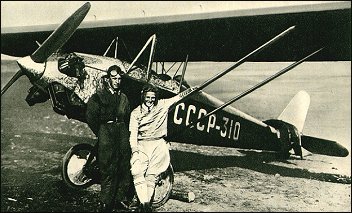

Yakovlev Ya-3 Pionerskaja Pravda


Specification
 CREW2
 ENGINE1 x Walter, 44kW
 WEIGHTS
    Take-off weight762 kg1680 lb
    Empty weight392 kg864 lb
 DIMENSIONS
    Wingspan11.0 m36 ft 1 in
    Length7.1 m23 ft 4 in
    Height2.4 m8 ft 10 in
    Wing area16.5 m2177.60 sq ft
 PERFORMANCE
    Max. speed146 km/h91 mph
    Cruise speed125 km/h78 mph
    Ceiling4200 m13800 ft
