Yakovlev Yak-11

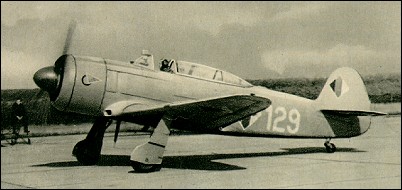

Known to NATO as Moose, the Yak-11 was a two-seat intermediate trainer and became a standard type with the Soviet forces and those of a large number of other countries. Production was also undertaken in Czechoslovakia as the C-11.

Yakovlev Yak-11

 ENGINE1 x ASh-21, 515kW
    Take-off weight2418 kg5331 lb
    Empty weight1900 kg4189 lb
    Wingspan9.4 m31 ft 10 in
    Length8.5 m28 ft 11 in
    Height3.3 m11 ft 10 in
    Wing area15.4 m2165.76 sq ft
    Max. speed456 km/h283 mph
    Cruise speed400 km/h249 mph
    Ceiling8000 m26250 ft
    Range w/max.fuel1290 km802 miles
 ARMAMENT1 x 12.7mm machine-guns

bombardier, 24.05.2011

Onw Yak-11 was the first aircraft to be shot down during the Korean war
