Yakovlev Yak-112
1993
Back to the Virtual Aircraft Museum
  PRIMARY TRAINERVirtual Aircraft Museum / USSR / Russia / Yakovlev

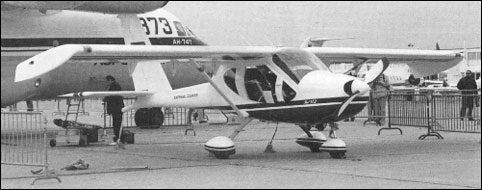

Yakovlev Yak-112

The last aircraft design competition in the Soviet Union was for a two-seat primary trainer for DOSAAF and aero clubs. Yakovlev of course competed. The Yak-112 was the outright winner, but it has subsequently been developed as a multi-role four-seater.

Unlike so many konversiya aircraft, the Yak-112 seems assured of commercial success. A model was displayed in 1990, a mock-up in 1991 and the first flight was made on 20 October 1992 (a recent Russian article gives the date as 27 May 1993). Yakovlev claim that by mid-1993 orders totalled 500, including large numbers from India and South American countries. Production is in hand at two plants, Smolensk and Irkutsk.

Bill Gunston & Yefim Gordon "Yakovlev Aircraft since 1924", 1997

3-View

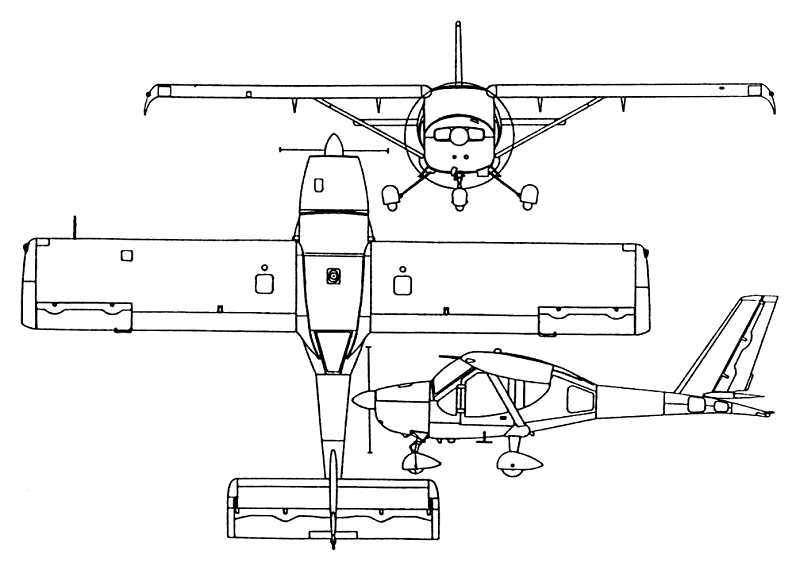

Yakovlev Yak-112A three-view drawing (800 x 570)


Specification
 WEIGHTS
    Take-off weight1290 kg2844 lb
 DIMENSIONS
    Wingspan10.25 m33 ft 8 in
    Length6.96 m22 ft 10 in
    Wing area16.96 m2182.56 sq ft
 PERFORMANCE
    Cruise speed210 km/h130 mph
    Ceiling4000 m13100 ft
    Range w/max.fuel1200 km746 miles
    Range w/max.payload850 km528 miles
