ASJA Jaktfalk II
1933
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Sweden / ASJA

ASJA Jaktfalk II

When, on 1 January 1933, the newly-established aviation department of the Linkoping-based railway wagon and carriage manufacturer, the AB Svenska Jarnvagsverkstaderna (ASJA) acquired the assets of Svenska Aero AB of Lidingo, it took over the continued development of the latter company's S.A. 14 Jaktfalk (Gerfalcon) single-seat fighter. An improved version of the J 6A was evolved by ASJA as the J 6B Jaktfalk II, this being offered with Armstrong Siddeley Jaguar or Panther engines, or the Bristol Jupiter. The Jaktfalk II retained the revised wing structure and lengthened fuselage of the J 6A, to which were added redesigned horizontal tail surfaces from which the bracing struts were eliminated. Seven were ordered by Flygvapnet with the supercharged nine-cylinder Bristol Jupiter VIIF radial rated at 520hp at 3050m, armament comprising the standard paired 8mm synchronised machine guns. The contract was placed with ASJA on 1 May 1933, and the seven aircraft were delivered during the following October-November, serving, like the Svenska Aero-built J 6s and J 6As, with Flygflottiljl at Vasteras. Two of the J 6B Jaktfalkar (together with a single Svenska Aero-built J6A) were donated to Finland in December 1939, subsequently serving in the fighter training role.

3-View

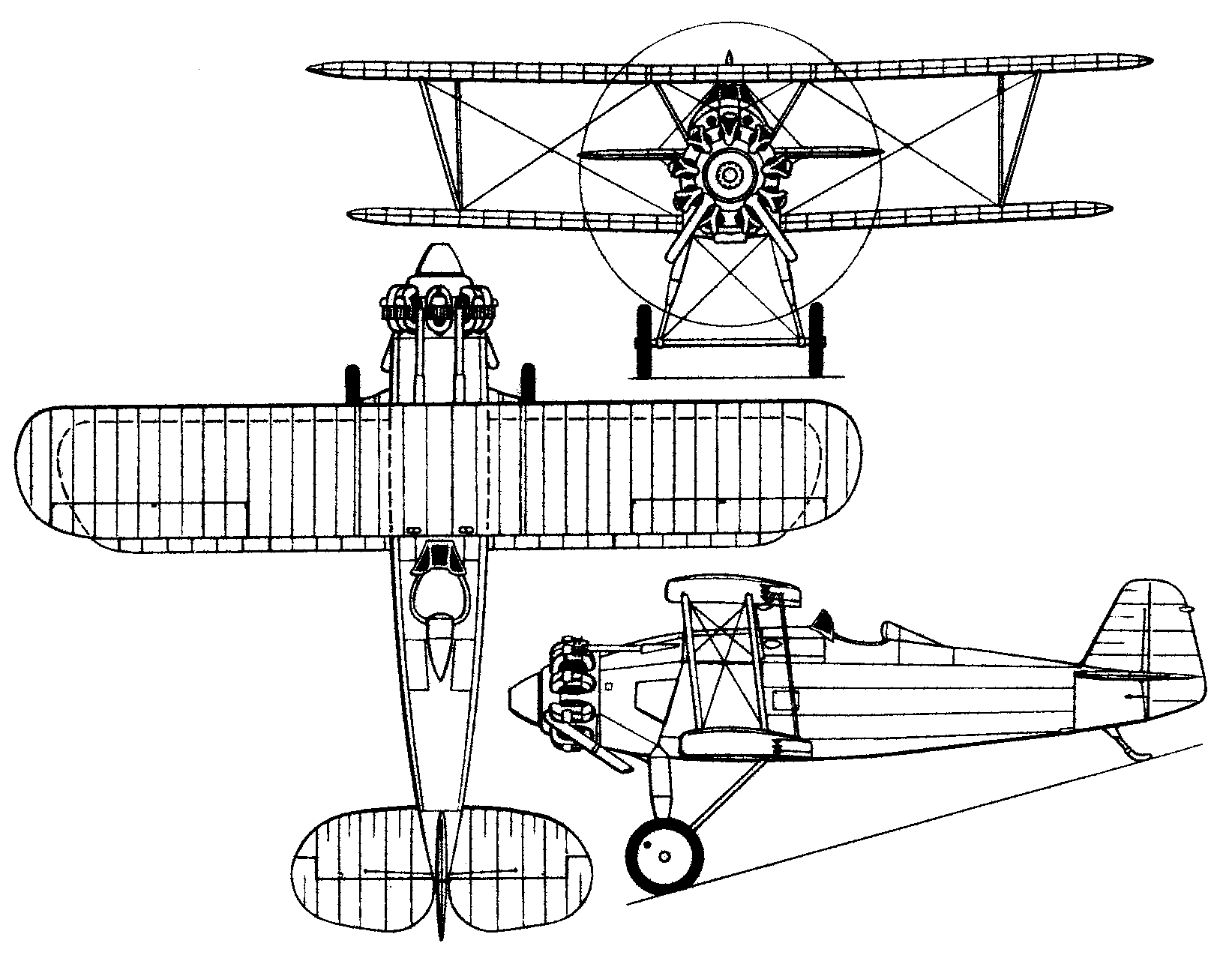

ASJA Jaktfalk IIA three-view drawing (1643 x 1278)


Specification
 WEIGHTS
    Take-off weight1470 kg3241 lb
    Empty weight946 kg2086 lb
 DIMENSIONS
    Wingspan8.80 m29 ft 10 in
    Length7.50 m25 ft 7 in
    Height3.46 m11 ft 4 in
    Wing area21.80 m2234.65 sq ft
 PERFORMANCE
    Max. speed310 km/h193 mph

Comments
M.Pusateri, 06.04.2017

A vintage bird from aviation's past.

Frode Lindgjerdet, 02.11.2012

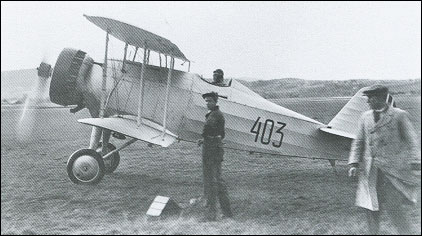

Seems like the picture is in fact of the specimin on trial for the Norwegian Amry Airforce, in that case the engine is an Armstrong-Siddley Panther XI. However, in trials it produced too much vibrations and could not be used as a float plane and was not adapted.

Brian Gaunt, 12.07.2008

The Jaktfalk II was an improved version of the J6A and was available with the Armstrong Siddeley Jaguar or Panther engines,or the Bristol Jupiter.The Jaktfalk II retained the revised wing structure and lengthened fuselage of the J6A,to which were added redesigned horizontal tail surfaces from which the bracing struts were eliminated.
Seven aircraft were ordered by Flygvapnet powered by the supercharged nine-cylinder Bristol Jupiter VIIF radial engine rated at 520hp at 10,000ft(3050m).Armament comprised the standard paired 8mm machine guns synchronised to fire through the propeller blades.The contract was placed with ASJA on 1 May 1933 and the seven aircraft were delivered during the following October-November serving,like the Svenska Aero-built J6s and J6As,with Flygflottilj1 at Vasteras.Two of the J6B Jaktfalkar together with a single Svenska Aero-built J6A were donated to Finland in December 1939 and went on to serve in the fighter training role.
Specifications:
Span:28ft 10.50in (8.80m)
Length:24ft 7.25in (7.50m)
Height:11ft 4.25in (3.46m)
Wing area:234.66sq ft (21.80sq m)
Empty weght:2,085lb (946kg)
Loaded weight:3,240lb (1470kg)
Maximum speed:193mph (310km/h)
Cruising speed:161mph (260km/h)
Time to 3,280ft (1000m):4.0min
Reference source:"The Complete Book of Fighters"
Authors:William Green and Gordon Swanborough.
Published by Salamander Books Limited London.
