AEA Aerodrome No.1 Red Wing

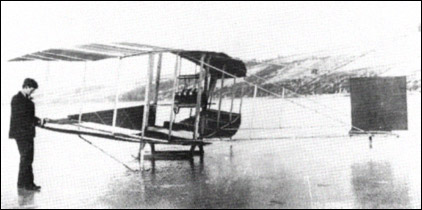

The first AEA aeroplane was named Red Wing because of the colour of its fabric covering. It was a biplane with a movable elevator ahead of the wings and a fixed stabilizer behind. A movable rudder was provided, but no means oflateral controL Since it was to be flown from ice, it used skids for an undercarriage. The 'sponsor', or principal designer, was Lt Selfridge.

The first of two flights was made by Thomas Baldwin on 12 March, 1908, since Selfridge was absent on Army business. The flight covered a distance of 97m and ended in a crash landing. This has been represented as the first public aeroplane flight in the United States, and figured in the subsequent controversies with the Wrights. The second flight, on 18 March, also ending in a crash, covered only 37m and proved the need for lateral control.

Peter M. Bowers "Curtiss Aircraft 1907-1947", 1979


Specification
 ENGINE1 x 40hp Curtiss air-cooled V-8
 WEIGHTS
    Take-off weight258 kg569 lb
 DIMENSIONS
    Wingspan13.2 m43 ft 4 in
    Wing area35.76 m2384.92 sq ft

Comments
john passant, 07.05.2012

Was this the same Lt Selfridge as was killed in a crash with one of the Wright brothers on Army trials...for which Selfridge AFB is named? The other Wright brother was attending an air show in France when thid occured...

Roy Mize, 08.05.2011

Pilot was F.W. 'Casey' Baldwin, no relation to Thomas Baldwin. Search on 'Members of Aerial Experiment Association"

Frederick Wallace Baldwin.
