Aero Spacelines 377MG Mini Guppy
1967
Back to the Virtual Aircraft Museum
  TRANSPORTVirtual Aircraft Museum / USA / Aero Spacelines

Aero Spacelines 377MG Mini Guppy

The 377MG Mini-Guppy was the first of the new generation of Guppys that was built using an entirely new fuselage to connect the existing Stratocruiser sections. Gone was the modified Stratocruiser's limitation of a 2.4m wide floor. By designing a new fuselage, Aero Spacelines was able to create the first "wide-body" Guppy, with a 4m wide cargo floor and a maximum inside diameter of 5.5m with the constant section measuring just over 22m long.

The first flight as 377MG Mini-Guppy, christened "Spirit of Santa Barbara", was on May 24, 1967. This Guppy featured a swing tail for loading cargo.

Only two days later on May 26, the Mini-Guppy was used for it's first cargo flight, flying a Budd Company Skylounge across the Atlantic to the 1967 Paris Airshow. While in France, the Mini-Guppy was flown south to Toulouse for a demonstration for Aerospatiale officials who were considering using this type of an aircraft in the future production of planned airliners.

3-View

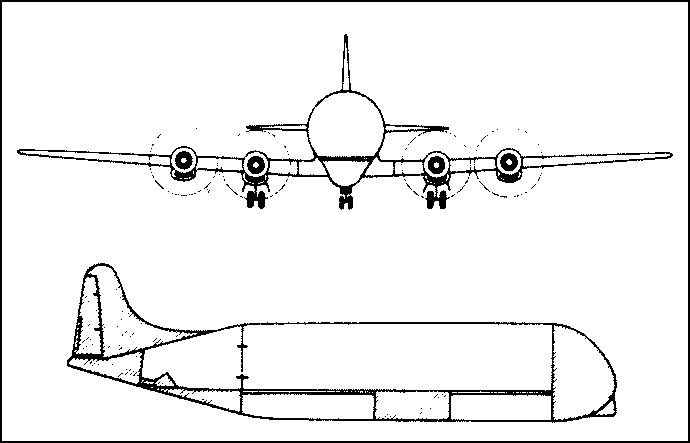

Aero Spacelines 377MG Mini GuppyA three-view drawing (690 x 443)


Specification
 MODEL377MG "Mini Guppy"
 CREW3
 ENGINE4 x Pratt-Whitney R-4360, 2575kW
 WEIGHTS
    Take-off weight64770 kg142794 lb
    Empty weight41275 kg90996 lb
 DIMENSIONS
    Wingspan43.0 m141 ft 1 in
    Length38.7 m126 ft 12 in
    Height11.6 m38 ft 1 in
 PERFORMANCE
    Cruise speed400 km/h249 mph
