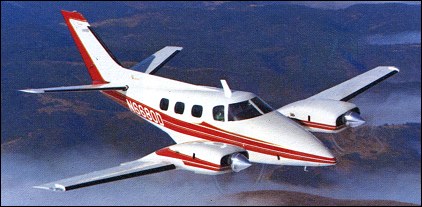

Beech Model 60 Duke

Beech entered the field of pressurised general aviation aircraft following a first flight of the Beech Model 60 Duke on 29 December 1966. Slightly larger than the members of the Baron family, the Duke was intended as a luxury four/six-seat aircraft, and was provided with an extensive range of equipment as standard. Overall configuration was similar'to that of other Beech twin-engined models, but because it was intended for operation at a higher gross weight it had strengthened landing gear, and much more powerful Avco Lycom-ing TIO-541-E1C4 turbocharged engines. The pressurisation system installed in the then current production aircraft had an advanced controller which allowed selection of cabin altitude before takeoff or landing, and the system was able to maintain a 3050m cabin pressure altitude to a height of 7660m.

Only two revised versions of the original Model 60 appeared during the production run, the Model A60 and Model B60 introduced in 1971 and 1974 respectively. The first provided a 23kg increase, in maximum take-off weight, the second a slightly larger cabin and increased fuel capacity. Such an aircraft was by no means cheap and, by American standards, was built in comparatively small numbers, with a total of 596 completed by the end of production in 1983.


Specification
 ENGINE2 x Avco Lycoming TIO-541-E1C4 turbocharged flat-six piston engines, 283kW
 WEIGHTS
    Take-off weight3073 kg6775 lb
    Operating empty weight2006 kg4422 lb
 DIMENSIONS
    Wingspan11.97 m39 ft 3 in
    Length10.31 m33 ft 10 in
    Height3.76 m12 ft 4 in
    Wing area19.78 m2212.91 sq ft
 PERFORMANCE
    Max. speed455 km/h283 mph
    Cruise speed402 km/h250 mph
    Ceiling9145 m30000 ft
    Range2165 km1345 miles

Comments
john, jlsparks(@)coolaccess.net, 17.12.2006

The Duke is a great airplane as long as you have a good mechanic. Keep it away from Beech service centers or you won't be able to aford it. I have had Dukes since 1992 and they are probably the most underated presurized twin on the market.
