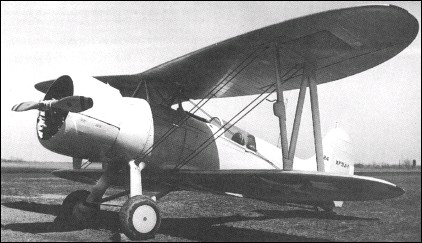

Berliner-Joyce XF3J-1

Designed by the US Navy Bureau of Aeronautics, turned over to the Berliner-Joyce Corporation for development and construction and ordered on 30 June 1932, the XF3J-1 experimental single-seat shipboard fighter was completed in January 1934. Of all-metal construction with a semi-monocoque fuselage and fabric-covered wings, the XF3J-1 was powered by a 625hp Wright XR-1510-26 radial and carried an armament of two 7.62mm synchronised machine guns. Provision was made for two 50kg bombs beneath the wings. Although offering a good performance, the XF3J-1 was surpassed by the Grumman XF2F-1, and no further development was undertaken.

3-View
Berliner-Joyce XF3J-1A three-view drawing (1653 x 1227)


Specification
 WEIGHTS
    Empty weight1233 kg2718 lb
 DIMENSIONS
    Wingspan8.84 m29 ft 0 in
    Length6.98 m23 ft 11 in
    Height3.28 m11 ft 9 in
    Wing area22.26 m2239.60 sq ft
 PERFORMANCE
    Max. speed336 km/h209 mph
    Range1157 km719 miles
