Boeing XF6B-1 / Model 236

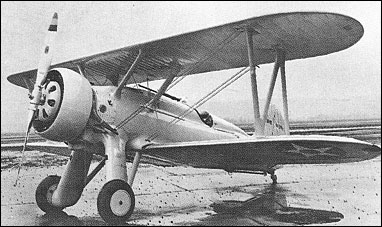

The last Boeing fighter of biplane configuration, the Model 236 single-seat shipboard fighter was designed around the 14-cylinder two-row Pratt & Whitney R-1535 Twin Wasp Junior engine rated at 625hp at 1676m. Of all-metal construction with fabric-covered wings, the Model 236 was assigned the designation XF6B-1 by the US Navy and flew on 1 February 1933. Armament comprised two 7.62mm guns and provision was made for a single 227kg bomb or two 52kg bombs, and on 21 March 1934, the prototype was assigned the new "bomber-fighter" designation of XBFB-1. The engine installation and undercarriage were refined during the test and evaluation programme, but no production was undertaken.

3-View

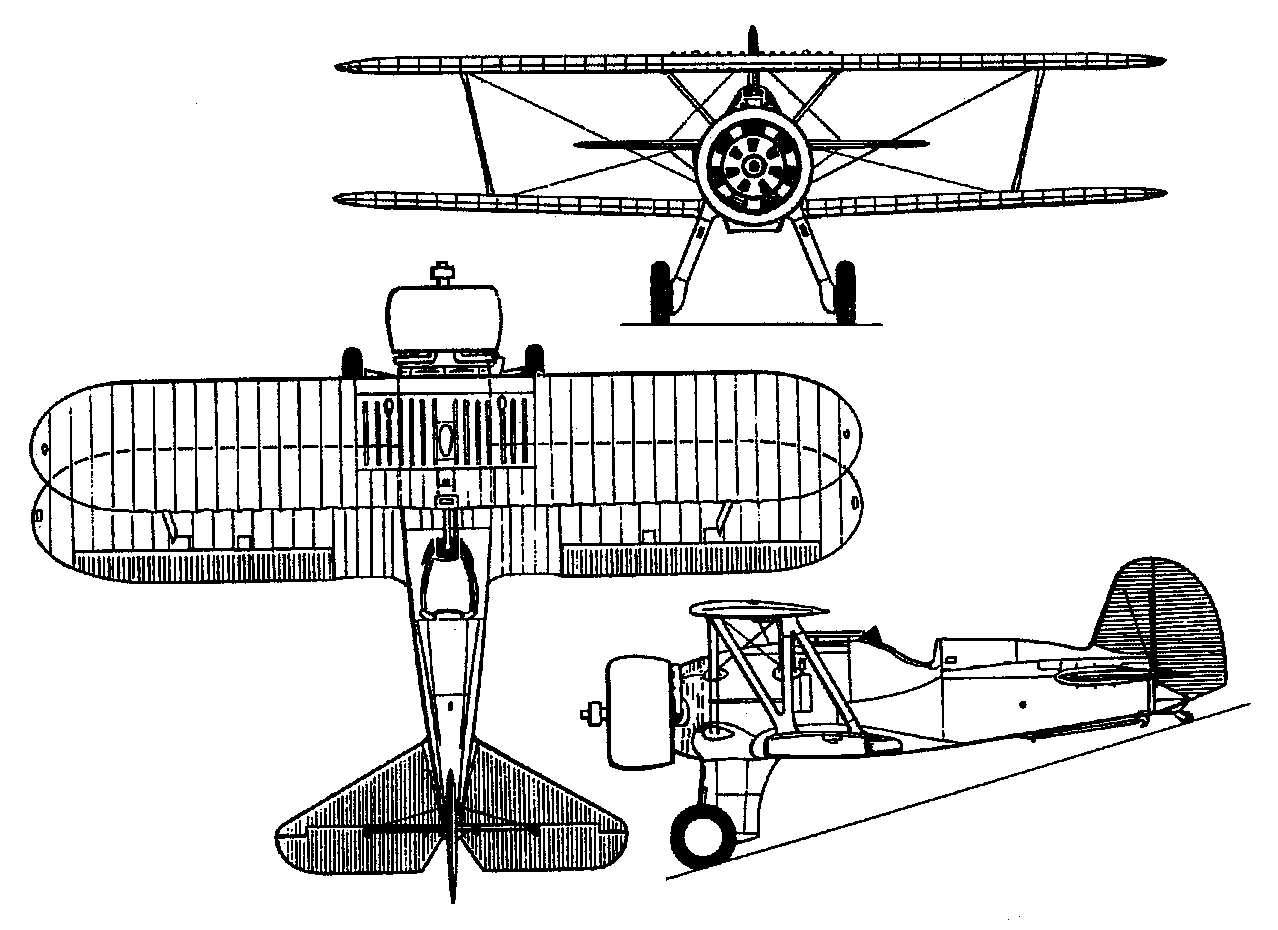

Boeing XF6B-1 / Model 236A three-view drawing (1278 x 930)


Specification
 WEIGHTS
    Take-off weight1680 kg3704 lb
    Empty weight1038 kg2288 lb
 DIMENSIONS
    Wingspan8.69 m29 ft 6 in
    Length6.74 m22 ft 1 in
    Height3.22 m11 ft 7 in
    Wing area23.41 m2251.98 sq ft
 PERFORMANCE
    Max. speed322 km/h200 mph
    Range845 km525 miles
