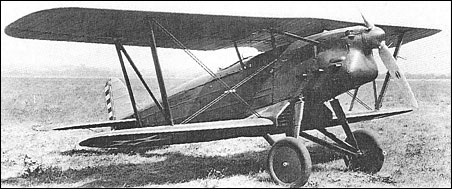

Boeing XP-8 / Model 66

The XP-8 (Model 66) actually preceded the XP-7, being delivered in July 1927, having been launched as a private venture late in the previous year. Powered by a 600hp Packard 2A-1500 water-cooled engine, the XP-8 utilised an airframe essentially similar to that of the US Navy XF2B-1, but performance failed to meet the requirements of the 1925 USAAC specification which it had been designed to meet, and the aircraft was finally scrapped in June 1929. Armament comprised one 7.62mm and one 12.7mm machine gun.


Specification
 WEIGHTS
    Take-off weight1552 kg3422 lb
    Empty weight1084 kg2390 lb
 DIMENSIONS
    Wingspan9.16 m30 ft 1 in
    Length6.95 m23 ft 10 in
    Height3.27 m11 ft 9 in
    Wing area22.57 m2242.94 sq ft
 PERFORMANCE
    Max. speed278 km/h173 mph
